Product Description

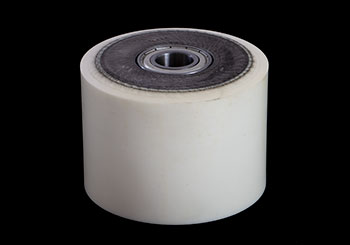

Hyster HY 2306047-A Load Wheel Assembly for electric lift trucks, featuring a 5.000 inch diameter polyurethane tread (95A) with a machined cast iron core, 3.875 inch width, and integrated sealed 6205-2RS ball bearings (25 mm ID). Direct replacement for Hyster OEM 2306047; cross-reference HY2306047-MIL; pre-assembled for high-frequency service.
Specifications
Wheel Specifications
| Outside Diameter | 5.000 inch |
| Width | 3.875 inch |
| Tread Material | Polyurethane, 95 Shore A durometer |
| Core Material | Cast Iron |
| Core Finish | Machined |
Bearing Specifications
| Bearing Type | 6205-2RS sealed deep groove ball bearings |
| Bearing ID | 25 mm |
| Seal Type | 2RS rubber seals (both sides) |
Part Numbers & Compatibility
| Manufacturer Part Number | HY 2306047-A |
| Original Equipment Part Number | 2306047 |
| Cross-Reference Part Numbers | HY2306047, HY2306047-MIL |
Performance
| Operating Duty Cycle | Continuous service, high-frequency cycle rated |
| Pre-Assembled | Yes |
Frequently Asked Questions
Q: What are the dimensions of the HY 2306047-A load wheel?
A: The HY 2306047-A features a 5.000 inch outside diameter and 3.875 inch width. The polyurethane tread is bonded to a machined cast iron core, providing a robust wheel assembly suitable for warehouse and distribution center use.
Q: What bearing type is integrated into the HY 2306047-A?
A: The HY 2306047-A includes integrated 6205-2RS sealed deep groove ball bearings with a 25 mm inner diameter. The -2RS designation indicates rubber seals are installed on both sides, protecting the bearing from dust, moisture, and contaminants in warehouse environments.
Q: What does the 95A durometer polyurethane tread mean?
A: The 95A designation (95 Shore A hardness) represents the polyurethane tread material's durometer rating. This hardness level provides balanced grip and wear resistance for general warehouse floor applications, with higher values indicating harder and more wear-resistant material.
Q: Why does the core material matter?
A: The HY 2306047-A uses a machined cast iron core, which provides structural rigidity and load-bearing capacity. Cast iron resists deformation under heavy loads and maintains consistent wheel geometry throughout extended service life.
Q: What part numbers cross-reference with the HY 2306047-A?
A: The HY 2306047-A is a direct replacement for original equipment Hyster part 2306047 and cross-references to HY2306047 and HY2306047-MIL. All three numbers identify the same pre-assembled load wheel assembly.
Q: Is the HY 2306047-A pre-assembled and ready for use?
A: Yes, the HY 2306047-A arrives pre-assembled with the bearing installed and sealed. The wheel is ready for immediate integration into lift truck maintenance and repair operations in warehouse and distribution environments.
