Product Description

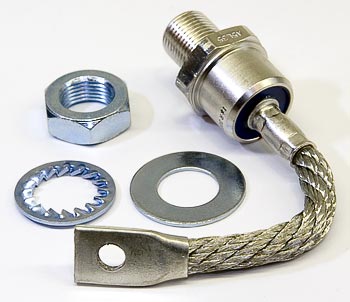

OEM rectifier (Hyster HY 3052540) for electric lift truck DC power systems; rated for 300A, 200VDC. Provides silicon rectification for propulsion and control circuits. Direct-fit design utilizes bolt-on terminals and OEM mounting pattern. No available cross-reference numbers. Heat dissipation requirements per Hyster technical guidelines.
Specifications
Electrical
| Rectifier Maximum Output Current | 300A |
| Rectifier Maximum Output Voltage | 200VDC |
| Rectifier Type | Silicon power rectifier for DC traction/control circuits |
| Operating Voltage Range | Up to 200VDC nominal |
Part Numbers
| OEM Part Number | HY 3052540 |
| Manufacturer Part Number | 3052540 |
Frequently Asked Questions
Q: What is the rated output capacity of the HY 3052540 rectifier?
A: The HY 3052540 is rated for 300A maximum output current at 200VDC. This silicon power rectifier is designed for DC traction and control circuits in Hyster electric lift trucks.
Q: What is the operating voltage range for the HY 3052540?
A: The HY 3052540 is rated for nominal 200VDC operation and can handle up to 200VDC input. Operating above this voltage will damage internal silicon junctions immediately.
Q: Which Hyster models use the HY 3052540 rectifier?
A: The HY 3052540 is used in Hyster electric lift trucks requiring silicon rectification for high-current DC propulsion systems. Verify your truck operates on 200VDC before ordering to ensure compatibility.
Q: What mounting method does the HY 3052540 use?
A: The HY 3052540 features bolt-on terminals and OEM mounting pattern designed for direct fit installation. It includes thermal mounting surface for heat dissipation per Hyster technical guidelines.
Q: What are the thermal management requirements for the HY 3052540?
A: The HY 3052540 requires adequate heat dissipation to prevent junction overtemperature. Follow Hyster thermal guidelines for mounting surface contact and ambient temperature limits to ensure 3 to 5 year service life.
Q: What failure symptoms indicate the HY 3052540 rectifier is defective?
A: Common rectifier failure signs include reduced propulsion power, intermittent motor engagement, or truck unable to achieve full charge. Test voltage output under load; low output indicates internal silicon damage requiring replacement.
