Battery Charger for Hyster W40Z, W45ZHD
HY 4629451
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

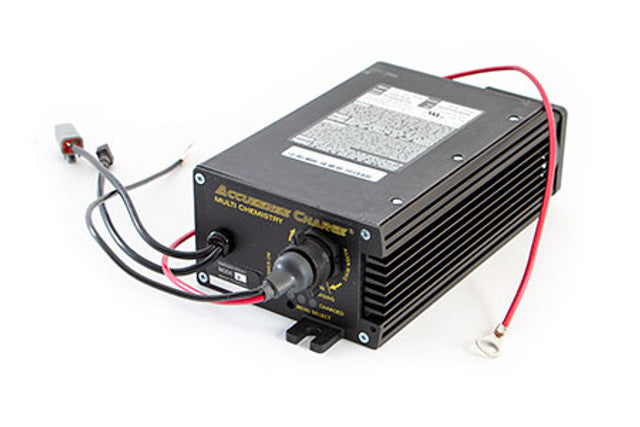

HY 4629451 is an industrial-grade battery charger engineered for Hyster electric lift truck applications. Rated for 20A output at 120VAC input, this multi-stage charger supports flooded, AGM, gel, and sealed lead-acid batteries. Features include a heavy-duty steel enclosure, O-ring connectors, automatic float/maintenance control, and LED panel indicators for state-of-charge, charging mode, and excess charge protection. Compatible with Hyster W40Z and W45ZHD electric pallet jack models. Cross-ref
Specifications
Material & Construction
| Construction Material | Heavy gauge steel enclosure with industrial powder coat finish |
Part Numbers & Compatibility
| Make | Hyster |
| Model | W40Z, W45ZHD |
| Manufacturer Part Number | 4629451 |
| Cross-Reference Part Numbers | HY4629451, 4629451 |
| Compatible Equipment Models | Hyster W40Z (B218), Hyster W45ZHD (C215) Electric Pallet Jacks |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 20 A |
| Charge Profile | multi-stage, float/maintenance |
| Connector Type | O-ring lugs |
| Battery Chemistry | lead-acid, AGM, gel |
| Charging Current | 20 amperes nominal output |
| Compatible Battery Capacity | 50Ah to 200Ah |
| Battery Type Support | Flooded, AGM, gel, and sealed lead-acid |
Performance Specifications
| Efficiency Rating | ≥85% at rated load |
Additional Specifications
| Connectors | O-ring type, moisture-resistant |
| LED Status Display | Five-panel indicators: Power On, State of Charge, Charging Mode, Error Status, Maintenance Mode |
| Control Features | Automatic float and maintenance control to prevent overcharging |
Frequently Asked Questions
Q: What is the HY 4629451 battery charger rated for?
A: The HY 4629451 is designed to deliver 24VDC regulated output at 20 amps continuous charging current. It is engineered specifically for Hyster electric lift truck batteries and supports lead-acid, AGM, gel, and sealed battery types.
Q: Which Hyster electric lift trucks is the HY 4629451 compatible with?
A: The HY 4629451 is compatible with Hyster W40Z and W45ZHD electric lift truck models. Verify your equipment's charging requirements match 24VDC/20A output before ordering.
Q: What battery types can the HY 4629451 charge?
A: The HY 4629451 supports lead-acid, AGM (absorbent glass mat), gel, and sealed battery technologies commonly used in Hyster electric lift trucks. The charger includes automatic float and maintenance control to prevent overcharging and extend battery lifespan across all supported types.
Q: What are the electrical specifications of the HY 4629451?
A: The HY 4629451 operates on a multi-stage charge profile with float/maintenance control. It provides 24VDC output at 20 amps continuous current and is compatible with lead-acid, AGM, gel, and sealed battery chemistries.
Q: How do I know if the HY 4629451 is the right replacement charger for my Hyster lift truck?
A: The HY 4629451 is a replacement charger for Hyster W40Z and W45ZHD electric lift trucks. Confirm your equipment's charging voltage and amperage requirements match 24VDC/20A output before purchasing.
