Product Description

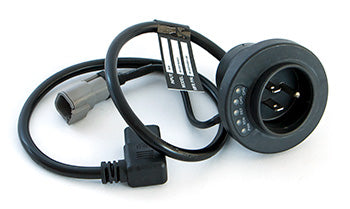

Hyster AC Port Flanged (HY 4655720), OEM electrical accessory port for electric lift trucks; panel-mount flanged AC inlet, 15A 125VAC, metal shell, cross-reference numbers 39-02016A61, TVH SY1234633, Yale YT4655720. Compatible with Hyster and Yale electric lift models.
Specifications
Application
| Equipment Type | Electric lift trucks – AC power accessory interface |
Dimensional
| Model Reference | DPI-CNVP01-A03 |
Electrical
| Rated Current | 15A |
| Operating Voltage | 125VAC |
| Poles/Wires | 2-pole, 3-wire (grounded) |
Hydraulic/Pneumatic
| Port Configuration | AC power flanged port; not hydraulic or pneumatic |
Part Numbers
| OEM Part Number | HY 4655720 |
| Cross-Reference Part Numbers | 4655720, 39-02016A61, 39-02016A61-03, SY1234633 (TVH), FI67447854, FI67741672, YT4629457 (Yale), YT4655720 (Yale) |
| Replacement/Alternate Numbers | E316518 A-04 |
Frequently Asked Questions
Q: What is the rated current and voltage for the HY 4655720 AC port?
A: The HY 4655720 is rated for 15A at 125VAC, designed for electrical panel-mount applications on Hyster and Yale electric lift trucks.
Q: What are the connector specifications for this flanged AC inlet?
A: The HY 4655720 features a 2-pole, 3-wire grounded configuration (DPI-CNVP01-A03 model reference) with a metal shell construction for durability.
Q: Which Hyster and Yale models is this AC port compatible with?
A: The HY 4655720 is compatible with multiple Hyster and Yale electric lift truck models. Cross-reference numbers include Yale YT4655720, YT4629457, and various TVH reference numbers (SY1234633, FI67447854, FI67741672).
Q: What cross-reference part numbers can be used for replacement or interchangeability?
A: Cross-reference numbers for the HY 4655720 include 39-02016A61, 39-02016A61-03, SY1234633 (TVH), FI67447854, FI67741672, YT4629457 (Yale), and YT4655720 (Yale). These references aid in compatibility verification across suppliers.
Q: Is this a panel-mount or inline electrical accessory?
A: The HY 4655720 is a panel-mount flanged design, meaning it mounts directly to the electrical enclosure of Hyster and Yale electric lifts for permanent installation.
