Product Description

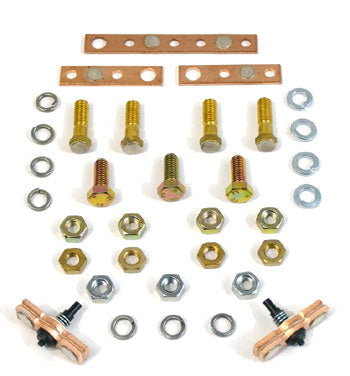

Contactor Repair Kit HY 2305749 is an OEM service kit for Hyster W 40 XL/XT electric pallet truck control panels, designed for forward/reverse direction control. Supersedes part HY 2305835 and matches control panel PMC systems. Contains high conductivity copper alloy contacts and SAE-grade phenolic insulation for 24VDC circuits.
Compatibility: Fits pallet jacks made by Hyster, model W40XL/W40XT. SKU: HY 2305749
Specifications
Electrical
| Application Voltage | 24VDC nominal control circuit |
| Component Type | Power contactor repair |
Part Numbers
| OEM Part Number | HY 2305749 |
| Cross-Reference Part Numbers | HY2305749, 2305749, Hyster 2305749 |
| Supersedes | HY 2305835 |
| Compatible with Models | Hyster W 40 XL, W 40 XT control panel PMC |
Performance
| Duty Cycle | S3-30% intermittent rated contacts |
Frequently Asked Questions
Q: What equipment does the HY 2305749 contactor repair kit fit?
A: The HY 2305749 is an OEM service kit designed for Hyster W40XL and W40XT electric pallet truck control panels. It is specifically engineered for forward and reverse direction control systems using PMC control panel configurations.
Q: What are the electrical specifications for the HY 2305749?
A: The HY 2305749 operates at 24VDC nominal control circuit voltage and is rated for S3-30% intermittent duty cycle. It functions as a power contactor repair kit for directional control applications.
Q: What materials are used in the HY 2305749 contactor contacts?
A: The kit contains high conductivity copper alloy contacts paired with SAE-grade phenolic insulation. These materials provide reliable electrical conductivity and mechanical durability for 24VDC circuit applications.
Q: Does the HY 2305749 replace the HY 2305835?
A: Yes. The HY 2305749 supersedes part number HY 2305835. Cross-reference part numbers include HY2305749 and 2305749.
Q: What is the service life expectancy of this contactor repair kit?
A: The HY 2305749 is designed for intermittent duty cycle (S3-30%) service. Actual lifespan depends on switching frequency and electrical load conditions. Regular inspection of contacts for wear or discoloration is recommended during preventive maintenance intervals.
