HY 2307724

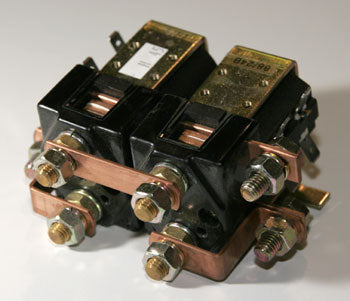

24VDC 80A DPDT Main Power Contactor

Regular price $181.86
Sale price $181.86 Regular price $157.94
In stock

Questions? Call +1-800-669-7554

Contactor Contactors Control Panel Electric Lift Truck Parts Hyster PMC W 40 XL XT

Compatibility

Make Hyster
Model W40XL, W40XT

Reference Diagrams

Visit our diagram page for part references to popular models


Product Description

Hyster HY 2307724 is an OEM 24VDC, 80A DPDT main contactor for electric lift truck control panels, designed specifically for Hyster W40XL and W40XT models up to serial number A218H-02151. Features include double pole double throw configuration, panel mount, silver alloy contact points, and continuous duty operation. No known supersession or equivalent part numbers are published for this component.

Compatibility: Fits pallet jacks made by Hyster, model W40XL/W40XT. SKU: HY 2307724

Specifications

Electrical
Coil Voltage24VDC
Continuous Current Rating80A
FunctionMain power contactor for electric lift truck control panel
Maximum Operating Voltage24VDC
Material
Housing MaterialHigh-impact thermoset resin
Part Numbers
OEM Part NumberHY 2307724
Manufacturer Part Number2307724
Model CompatibilityHyster W40XL, Hyster W40XT
Application Serial Number LimitationApplicable to Hyster units with serial number up to A218H-02151
Performance
Rated Duty CycleContinuous at rated voltage and current

Frequently Asked Questions

Q: What is the HY 2307724 main contactor and what does it do?
A: The HY 2307724 is a 24VDC main power contactor designed for electric lift truck control panels. It switches main power circuits in the truck electrical system and operates continuously during truck operation.

Q: Which Hyster models use the HY 2307724?
A: The HY 2307724 is designed for Hyster W40XL and W40XT electric pallet trucks. However, it is applicable only to units with serial numbers up to A218H-02151.

Q: What are the electrical ratings for HY 2307724?
A: The HY 2307724 has a coil voltage of 24VDC and a continuous current rating of 80A. It features a double pole double throw (DPDT) configuration.

Q: What is the contact material in HY 2307724?
A: The HY 2307724 uses silver alloy contact points. These provide reliable electrical conductivity for main power switching applications.

Q: Is there a supersession or equivalent part for HY 2307724?
A: No known supersession or equivalent part numbers are published for HY 2307724. This is the specific OEM contactor for those serial number ranges.

Q: What mounting style does HY 2307724 use?
A: The HY 2307724 is panel mount, designed to install directly into the truck control panel assembly.
