• HY 2305835, Contactor Assembly F/R up to S/N A218H-001916

Hyster Contactor Assembly for W40XL/W40XT

HY 2305835

24VDC Forward/Reverse Contactor Assembly 80A

$169.73
$169.73 $157.94
Shipping calculated at checkout.
In stock
  • Expert support & fitment help
  • 30-day returns
  • Fast Shipping
Control Panel Electric Lift Truck Parts Hyster Resistor W 40 XL XT

Compatibility

Make

Hyster

Model

W40XL, W40XT

Visit our diagram page for part references to popular models

Product Description

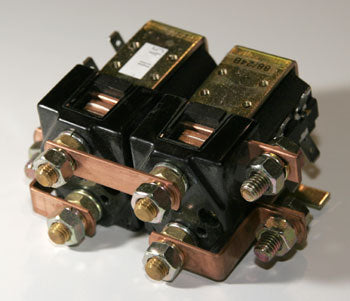

Hyster HY 2305835 Contactor Assembly F/R, designed for electric pallet trucks (W40XL, W40XT), controls forward/reverse operation up to serial A218H-001916. 24VDC, DPDT, 80A rating, silver alloy contacts, panel mount.

Compatibility: Fits pallet jacks made by Hyster, model W40XL/W40XT. SKU: HY 2305835

Specifications

Part Numbers & Compatibility
MakeHyster
ModelW40XL, W40XT
Part Number2305835
Compatible EquipmentHyster W40XL, W40XT electric pallet jacks up to serial number A218H-001916
Electrical Specifications
Rated Voltage24VDC control circuit
Rated Current80A continuous current per pole
Coil Voltage24VDC operating
Performance Specifications
Auxiliary Contact Rating3A at 24VDC
Additional Specifications
Contact ConfigurationDPDT (Double Pole Double Throw)
Contact MaterialSilver alloy
Frame MaterialMolded thermoplastic enclosure (UL94 V-0 flame rating)
Mounting StylePanel mount
Mounting Hole Pattern3.00 inch center-to-center
Service LifeMinimum 300,000 mechanical cycles at rated current
Related Service Kit2305749
FunctionForward/reverse operation control

Frequently Asked Questions

Q: Which Hyster models is the HY 2305835 contactor compatible with?
A: The HY 2305835 is designed for Hyster W40XL and W40XT electric pallet trucks. Compatibility is limited to units up to serial number A218H-001916. Verify your equipment serial number before ordering.

Q: What material are the contacts made of and how durable is this contactor?
A: The contactor features silver alloy contacts known for their durability and performance in electric lift truck applications. These contacts are designed to handle forward and reverse operation control reliably.

Q: What is the service kit part number for the HY 2305835?
A: The service kit for the HY 2305835 is part number HY 2305749. This kit contains replacement parts for routine maintenance.

Q: How is the HY 2305835 contactor mounted?
A: The HY 2305835 is a panel-mount contactor, designed to fit directly into the electrical control panel of the pallet truck.
