Product Description

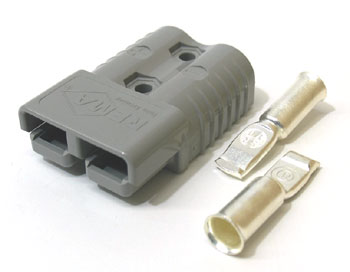

Gray battery connector with integrated copper alloy contacts for Hyster electric lift trucks, OEM part number HY 250247. Panel-mount design constructed with impact-resistant thermoplastic housing; compatible with Hyster W40XL and W40XT models and 1/0 AWG battery cables. Complies with UL 94 V-0 flammability ratings and supports 24VDC and 36VDC operation.
Compatibility: Fits pallet jacks made by Hyster, model W40XL/W40XT. SKU: HY 250247
Specifications
Dimensional Specifications
| Mounting Hole Pattern | Two holes on 2.04 inch center-to-center spacing |
Electrical
| Contact Configuration | 1/0 AWG cable compatibility |
| Voltage Rating | Rated for 24VDC and 36VDC battery circuits |
Part Numbers
| OEM Part Number | HY 250247 |
| Alternate Part Number | 250247 |
| Compatible Models | Hyster W40XL, Hyster W40XT |
Performance Specifications
| Duty Cycle | Suitable for continuous battery connection/disconnection up to 100 cycles/hour |
Frequently Asked Questions
Q: What does the HY 250247 gray battery connector do on Hyster electric pallet trucks?
A: The HY 250247 is a gray OEM battery connector with copper alloy contacts designed to connect battery power to the electrical system. It features panel-mount design and is rated for both 24VDC and 36VDC operation on Hyster W40XL and W40XT electric pallet trucks.
Q: Which Hyster models are compatible with the HY 250247 connector?
A: The HY 250247 is engineered for Hyster W40XL and W40XT electric pallet trucks. It supports both 24VDC and 36VDC battery circuits on these models.
Q: What cable gauge does the HY 250247 accept?
A: The HY 250247 is rated for 1/0 AWG battery cable. Verify that your battery cables match this gauge specification to ensure secure contact and safe power delivery.
Q: What are the mounting specifications for the HY 250247 connector?
A: The HY 250247 features panel-mount design with two holes on 2.04 inch center-to-center spacing. This dimension allows direct mounting to standard truck electrical panels.
Q: What safety certifications does the HY 250247 carry?
A: The HY 250247 complies with UL 94 V-0 flammability rating and is constructed with impact-resistant thermoplastic housing. This rating ensures the connector meets electrical safety standards for material handling equipment.
Q: What material are the HY 250247 contacts made from?
A: The HY 250247 features integrated copper alloy contacts designed for low electrical resistance and corrosion resistance. Copper alloy contacts maintain reliable current flow under high-amperage battery circuit conditions.
