Product Description

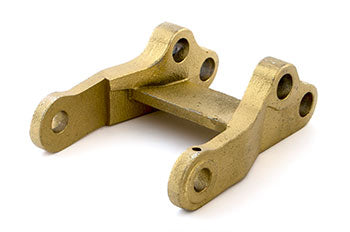

Hyster HY 2302730 is an OEM Bell Crank (Riser Load Wheel) designed for W40XL and W40XT electric pallet truck models. Engineered for load transmission in the frame and undercarriage assembly, this component is manufactured from precision-machined ferrous alloy and conforms to AWS D1.1 weld standards.
Compatibility: Fits pallet jacks made by Hyster, model W40XL/W40XT. SKU: HY 2302730
Specifications
Material & Construction
| Material Specification | Precision-machined ferrous alloy (OEM grade for lift truck applications) |
Part Numbers
| OEM Part Number | HY 2302730 |
| Manufacturer Part Number | 2302730 |
| Compatibility | Fits Hyster W40XL, W40XT electric pallet trucks |
Frequently Asked Questions
Q: What is the HY 2302730 bell crank and where does it fit?
A: The HY 2302730 is an OEM bell crank (riser load wheel) component designed for Hyster W40XL and W40XT electric pallet trucks. It transmits load forces from the lifting mast through the frame and undercarriage assembly to the wheels and drive components.
Q: What material and specifications does the HY 2302730 bell crank meet?
A: The HY 2302730 is precision-machined from OEM-grade ferrous alloy (steel). The component conforms to AWS D1.1 weld standards and is engineered to withstand cyclic loading and stress concentration without plastic deformation or fatigue failure in normal lift truck operation.
Q: Can the HY 2302730 bell crank be used on W40 models other than the XL and XT?
A: The HY 2302730 is designed specifically for W40XL and W40XT models. Do not assume compatibility with other W40-series or W50-series Hyster trucks. Verify exact part fit with your equipment documentation before ordering, as load wheel geometry and mounting dimensions vary by model.
Q: What symptoms indicate the HY 2302730 bell crank is damaged?
A: Replace the HY 2302730 if it is visibly cracked, bent, or shows signs of metal fatigue. If the truck pulls to one side, the lift feels unstable, or load wheel contact is uneven, inspect the bell crank for distortion or weld separation that may require component replacement.
