Product Description

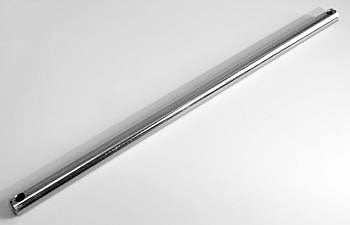

HY 2309006 is a Hyster OEM bell crank pin designed specifically for use with 27 inch wide forks on electric pallet truck models W40XL and W40XT. Constructed from hardened alloy steel and precision machined for OEM fit, this pin mounts in the undercarriage as a critical component for bell crank articulation. OEM part number HY 2309006; see manufacturer literature for application assurance.
Compatibility: Fits pallet jacks made by Hyster, model W40XL/W40XT. SKU: HY 2309006
Specifications
Compatibility
| Compatible Truck Models | Hyster W40XL, Hyster W40XT |
Material & Construction
| Primary Material | Alloy steel |
Part Numbers
| OEM Part Number | HY 2309006 |
| Manufacturer Part Number | 2309006 |
Frequently Asked Questions
Q: What material is the HY 2309006 bell crank pin made from?
A: The HY 2309006 is constructed from hardened alloy steel and precision machined for OEM fit and durability. Alloy steel provides strength and wear resistance in high-stress undercarriage applications.
Q: Which Hyster models and fork widths is the HY 2309006 designed for?
A: The HY 2309006 bell crank pin is designed specifically for 27 inch wide forks on Hyster W40XL and W40XT electric pallet truck models.
Q: What function does the HY 2309006 perform in the undercarriage?
A: This bell crank pin mounts in the undercarriage as a critical pivot component for bell crank articulation. It translates lifting force and directional control into fork movement.
Q: When does the HY 2309006 bell crank pin require replacement?
A: Replace if the pin shows visible wear, pitting, or bending, or if fork movement becomes binding, uneven, or difficult to control. Worn pins reduce precision and increase undercarriage stress.
Q: How long does an HY 2309006 bell crank pin typically last?
A: Lifespan depends on truck usage intensity, load consistency, and maintenance. Heavy-use equipment may require replacement every 2-4 years; moderate-use equipment may last longer. Inspect regularly for wear.
