Product Description

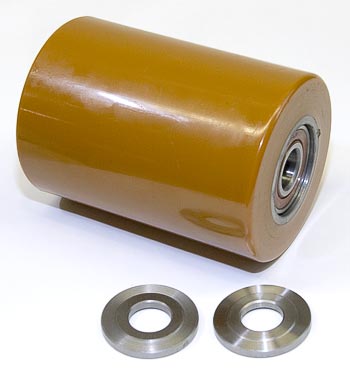

Hyster HY 2302392-A polyurethane load wheel assembly engineered for W 40 XL and W 40 XT electric walkie pallet trucks. Complete assembly features 3.250 inch outer diameter with 4.500 inch face width, manufactured from 95 Shore A durometer Durarun polyurethane compound. Factory-installed 6203Z shielded ball bearings with 1.574 inch bore diameter provide maintenance-free operation for frame and undercarriage load wheel applications.
Specifications
Material & Construction
| Wheel Material Composition | Polyurethane compound, formulation |
| Durometer Hardness Rating | 95 Shore A durometer (Scotch 95-A) |
| Wheel Core Material | Precision machined carbon steel core |
| Coating Finish | Polyurethane molded to core; natural finish |
Mechanical Specifications
| Outer Diameter | 3.250 inch |
| Face Width | 4.500 inch |
| Bore Diameter | 1.574 inch |
| Bearing Specification | 6203Z shielded ball bearing type |
Part Numbers & Compatibility
| Manufacturer Part Number | HY 2302392-A |
| Original Equipment Part Number | 2302392-A |
| Base Component Part Number | HY 2302392 |
| Cross-Reference Part Numbers | 2302392-A, HY2302392-A, Hyster 2302392-A |
| Supersedes/Equivalent Part Numbers | Supersedes 2302392, equivalent to HY2302392-MIL |
| Compatible Equipment Models | Hyster W 40 XL, Hyster W 40 XT electric walkie pallet trucks |
Frequently Asked Questions
Q: What are the specifications of the HY 2302392-A polyurethane load wheel?
A: The HY 2302392-A is a complete load wheel assembly with a 3.250 inch outer diameter and 4.500 inch face width. The wheel is manufactured from 95 Shore A durometer Durarun polyurethane compound. Factory-installed 6203Z shielded ball bearings with 1.574 inch bore diameter provide maintenance-free operation for frame and undercarriage applications.
Q: Which Hyster pallet truck models does the HY 2302392-A fit?
A: The HY 2302392-A polyurethane load wheel assembly is compatible with Hyster W40XL and W40XT electric walkie pallet trucks. Verify your equipment model before ordering to ensure proper fitment.
Q: What part numbers are equivalent to the HY 2302392-A?
A: The HY 2302392-A replaces 2302392-A, HY2302392-A, and Hyster 2302392-A. It supersedes part number 2302392 and is equivalent to HY2302392-MIL. The original equipment part number is 2302392-A.
Q: Why is 95 Shore A Durarun polyurethane used in this load wheel?
A: The 95 Shore A Durarun polyurethane compound provides durability and load-bearing capability for frame and undercarriage support on pallet jacks. This durometer rating offers a balance between hardness and flexibility for material handling equipment.
Q: Are the bearings in the HY 2302392-A maintenance-free?
A: Yes. The HY 2302392-A features factory-installed 6203Z shielded ball bearings with a 1.574 inch bore diameter. The shielded design provides maintenance-free operation without the need for greasing or additional lubrication.
Q: Is the HY 2302392-A a complete assembly or a wheel only?
A: The HY 2302392-A is a complete load wheel assembly that includes the polyurethane wheel, factory-installed bearings, and all mounting components. It is ready for use as a complete unit.
Q: How should the HY 2302392-A be stored?
A: Store the load wheel assembly in a dry location protected from direct sunlight and extreme temperatures. Keep the wheel in an upright position to prevent deformation of the polyurethane compound over long storage periods.
