Product Description

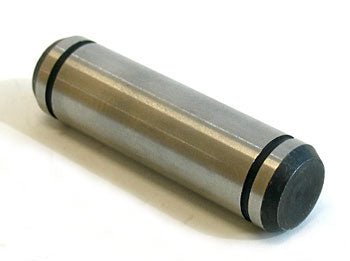

The Hyster HY 2306563 Pull Rod Pin, Rear is a precision-machined carbon steel linkage component designed for rear pull rod retention on Hyster W40XL and W40XT electric pallet jacks. This critical pin secures the rear pull rod to the frame, maintaining proper alignment and ensuring stable mechanical operation of the steering and drive linkage system. Engineered for durability and reliability, the HY 2306563 supports thousands of load cycles while maintaining secure fastening under warehouse and loading dock conditions.
Specifications
Material & Construction
| Material | Machined carbon steel, plain finish |
| Type | Precision-machined linkage pin |
Part Numbers
| Manufacturer Part Number | HY 2306563 |
| Original Equipment Manufacturer Part Number | 2306563 |
| Compatible Equipment Models | Hyster W40XL, Hyster W40XT |
| Equipment Type | Electric walkie pallet jack |
Frequently Asked Questions
Q: What is the HY 2306563 pull rod pin and what does it do?
A: The HY 2306563 is a precision-machined carbon steel pull rod pin designed for rear linkage retention on Hyster electric lift trucks. This pin secures the rear pull rod to the frame, ensuring proper alignment and stable mechanical connection within the chassis assembly.
Q: Which Hyster models use the HY 2306563 rear pull rod pin?
A: The HY 2306563 is compatible with Hyster W40XL and W40XT electric pallet jacks. Confirm your truck model before ordering.
Q: What material is the HY 2306563 pin made from?
A: The HY 2306563 is constructed from machined carbon steel with a plain finish. This material provides the hardness, shear strength, and durability required for reliable retention of steering and drive linkage components under repeated load cycles.
Q: Are there equivalent part numbers for the HY 2306563?
A: The HY 2306563 is the Hyster OEM part number. No confirmed cross-references or interchange equivalents from other brands are currently available. Specify the exact Hyster part number to guarantee fitment.
Q: What specifications define the HY 2306563 pin?
A: The HY 2306563 pin is precision-machined to specific diameter, length, and thread or retention design to match the rear pull rod hole and frame attachment point on W40XL and W40XT models. Exact dimensions are critical for proper alignment and safety.
