Product Description

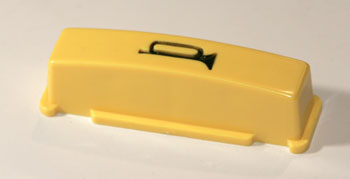

The Hyster HY 2305843 is a 24VDC horn button designed for electric pallet trucks. This robust component features a snap-fit flush actuator with silver alloy contacts and a mechanical service life rated to 100,000 actuations. The push-on spade connector integrates seamlessly with Hyster W40XL and W40XT electric pallet truck electrical systems, ensuring reliable horn operation in demanding warehouse and dock environments.
Specifications
Electrical
| Rated Voltage | 24VDC nominal system voltage |
| Rated Current | 5 amps DC (resistive load) |
| Wiring Connector Type | Push-on spade terminal, 0.187 inch |
Material & Construction
| Contact Base Material | Brass alloy, tin plated |
| Contact Material | Silver alloy |
| Actuator Design | Snap-fit flush actuator |
Part Numbers & Compatibility
| Part Number | HY 2305843 |
| Cross-Reference Part Numbers | Equivalent to 2305843; supersedes 0009730808 |
| Compatible Equipment Models | W40XL, W40XT electric pallet trucks |
Performance
| Mechanical Service Life | ≥ 100,000 actuations at rated load |
Frequently Asked Questions
Q: What is the voltage and current rating for the HY 2305843 horn button?
A: The HY 2305843 operates at 24VDC nominal system voltage with a 5-amp DC resistive load rating. This matches standard Hyster electric pallet truck electrical systems.
Q: Which Hyster pallet truck models use the HY 2305843 horn button?
A: The HY 2305843 is compatible with Hyster W40XL and W40XT electric pallet trucks. Verify your exact model before ordering.
Q: What is the mechanical service life rating for this horn button?
A: The HY 2305843 has a mechanical service life rated to 100,000 actuations. This durability is typical for snap-fit actuators in industrial material handling applications.
Q: What part numbers does the HY 2305843 supersede or cross-reference?
A: The HY 2305843 is equivalent to part number 2305843 and supersedes the older part number 0009730808. If you have equipment using the superseded part, this is a direct replacement.
Q: What type of connector does this horn button use?
A: The HY 2305843 uses push-on spade connectors for wiring. Ensure your harness or panel has compatible spade terminals.
Q: What is the actuator design and material of the HY 2305843?
A: This is a flush actuator with a robust snap-fit design. The contacts are silver alloy, which provides reliable electrical conductivity and corrosion resistance in industrial environments.
