Product Description

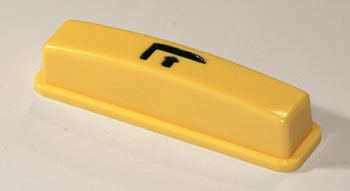

Hyster 2307701 Lower Actuation Button is a direct replacement control component for electric pallet jacks. Engineered for high-cycle pendant and handle applications on Hyster W40XL and W40XT models. Features momentary contact operation with thermoplastic construction and spade terminals. Reliable performance in demanding material handling environments.
Specifications
Part Identification
| Manufacturer Part Number | HY 2307701 |
| Manufacturer | Hyster |
Dimensional Specifications
| Diameter | 0.75 inch |
| Projection Above Panel | 0.20 inch |
Electrical Specifications
| Control Voltage | 24VDC |
| Contact Rating | 2A at 24VDC (resistive load) |
| Contact Type | Momentary contact |
| Terminals | Spade terminals |
Material & Construction
| Material Specification | Thermoplastic construction (non-conductive actuator) |
| Actuator Finish | Molded matte finish |
Mechanical Specifications
| Actuation Force | 1.5 lbf nominal for engagement |
| Rated Life | Minimum 1,000,000 cycles |
| Operating Angle | ±15° allowable misalignment |
| Duty Cycle | Intermittent operation, up to 60 actuations per minute |
Compatible Equipment
| Compatible Makes | Hyster |
| Compatible Models | W40XL, W40XT |
Frequently Asked Questions
Q: What models does the HY 2307701 lower button fit?
A: The HY 2307701 is the OEM actuation button for Hyster W40XL and W40XT electric pallet trucks. It is designed specifically for these models and their pendant and handle control applications.
Q: What are the electrical specifications for HY 2307701?
A: The HY 2307701 is rated at 24VDC operation, with a 1.5 lbf nominal actuation force for engagement. It features spade terminals for connection and is a momentary contact button.
Q: What material is the HY 2307701 button made from?
A: The HY 2307701 is constructed from thermoplastic with a non-conductive actuator. The diameter is 0.75 inch.
Q: What is the rated cycle life for HY 2307701?
A: The HY 2307701 has a minimum rated life of 1,000,000 cycles, making it suitable for high-cycle pendant and handle control applications.
Q: Is HY 2307701 a genuine Hyster part?
A: Yes, HY 2307701 is an OEM button manufactured to Hyster specifications for original equipment control systems.
