Product Description

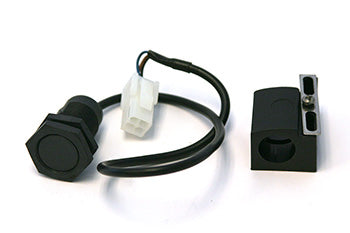

Hyster HY 2038546 is an OEM harness-integrated brake switch engineered for electric pallet trucks, including models W40Z (B218) and S1.6 (B456X). Designed for direct fitment in steer handle control assemblies and compatible with Hyster electromagnetic brake systems, this harness employs copper conductors and automotive-grade insulation. No cross-reference or superseding part numbers available.
Compatibility: Fits pallet jacks made by Hyster, model W40Z/45Z (B218). SKU: HY 2038546
Specifications
Dimensional
| Fits Model S/N | Specific to S/N B456X02269A and S/N B456X02270A (see Hyster technical documentation) |
Part Numbers
| OEM Part Number | HY 2038546 |
| Manufacturer Part Number | 2038546 |
| Compatible Truck Models | Hyster W40Z (B218), Hyster S1.6 (B456X) |
Frequently Asked Questions
Q: Which Hyster pallet jack models use the HY 2038546 brake switch?
A: The HY 2038546 is designed for Hyster W40Z (B218) and S1.6 (B456X) electric pallet trucks. Fitment is specific to serial numbers B456X02269A and B456X02270A. Always confirm your truck serial number against Hyster technical documentation before ordering.
Q: What is a harness-integrated brake switch and how does it work?
A: A harness-integrated brake switch combines the electrical switch assembly with the wiring harness as a single unit. This part activates the electromagnetic brake system when the steer handle is released, ensuring safe stopping and load holding.
Q: What type of electrical conductors does the HY 2038546 use?
A: The HY 2038546 employs copper conductors with automotive-grade insulation. Copper provides superior electrical conductivity and durability, while automotive-grade insulation ensures reliable operation in material-handling environments.
Q: Are there cross-reference or equivalent part numbers for HY 2038546?
A: No cross-reference or superseding part numbers are available for the HY 2038546. This is an OEM-specific component for Hyster electromagnetic brake systems. Always order using the original part number.
Q: What is the compatibility range for the HY 2038546?
A: This brake switch is compatible exclusively with Hyster electric pallet trucks. It does not fit other manufacturers such as Crown, Toyota, Yale, or Raymond. Confirm your truck OEM before ordering.
