Product Description

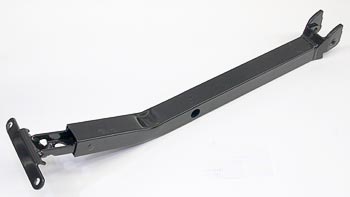

The Hyster steer arm assembly is a precision-welded carbon steel tiller arm designed for electric pallet truck steering systems. Featuring reinforced construction with 5 mm plate thickness and 6 mm set screw holes, this steer arm transmits operator input from the tiller handle to control truck direction and steering response. Built to withstand repeated steering loads and harsh warehouse environments, it delivers reliable performance across multiple Hyster electric walkie pallet jack models.
Specifications
Material & Construction
| Structural Material | Carbon steel fabricated weldment |
| Plate Thickness | 5 mm |
| Gusseting | Reinforced |
| Set Screw Hole Diameter | 6 mm |
| Weld Construction | Precision plug weld |
Part Identification
| Part Number | HY 2050082 |
| Compatible Models | Hyster W40Z, W45Z, W50Z (B218 and C215 series, up to serial number B218N18567G) |
Frequently Asked Questions
Q: Which Hyster electric pallet truck models fit the HY 2050082 steer arm assembly?
A: The HY 2050082 is compatible with Hyster W40Z, W45Z, and W50Z models in the B218 and C215 series, up to serial number B218N18567G. Cross-reference your truck serial number to verify compatibility before ordering.
Q: What material and structural specifications define the HY 2050082 steer arm?
A: The HY 2050082 is a welded carbon steel fabrication with 5 mm plate thickness, reinforced gusseting for rigidity, and 6 mm set screw holes for handle attachment. Precision plug weld construction ensures structural integrity under repeated steering loads.
Q: What function does the HY 2050082 tiller arm perform on the electric pallet truck?
A: The steer arm is the welded structural assembly that connects the steering handle to the truck hydraulics and drive system. It transmits operator input from the tiller handle to steer the truck wheels and control drive direction.
Q: What are common failure modes or damage patterns in the HY 2050082 steer arm?
A: Carbon steel welds can crack under impact or fatigue, particularly at gusset junctions. Corrosion pitting can weaken the arm over time if painted coating is compromised. Bent or twisted geometry indicates collision damage or overload and requires replacement to restore handling.
Q: How does the HY 2050082 attach to the truck frame and handle assembly?
A: The steer arm is bolted to the truck frame at the base and accepts the handle assembly via 6 mm set screw holes. Ensure all fasteners are torqued to OEM specification and verify zero play at the connection points.
Q: What maintenance extends the service life of the HY 2050082 steer arm?
A: Regular inspection of welds and painted surfaces prevents corrosion initiation. Touch up paint chips immediately, check fastener tightness periodically, and avoid impacts or overloading that stress the welded structure. Proper maintenance can extend the arm life significantly.
