Hyster

HY 1506791-AM

  • HY 1506791-AM, Brush Set (4) Includes Springs
$12.73 off

HY 1506791-AM

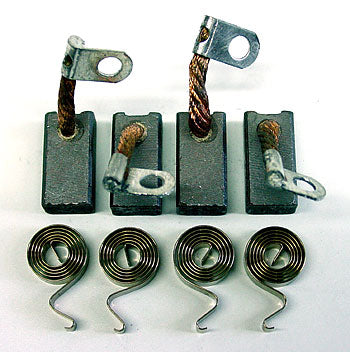

4-Piece Brush Set with Spring Assemblies

$165.50
$165.50 $178.23
In stock
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Brushes Drive Motor Electric Lift Truck Parts Hyster W 40Z 45Z

Compatibility

Make Hyster
Model W50Z, W40ZB218, W45ZB218, W45ZC215, W40Z, 45Z

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

OEM Hyster HY 1506791-AM brush set for electric lift truck traction motors, includes 4 electrographitic carbon brushes and spring assemblies. Compatible with W40Z (B218) and 45Z (C215) pallet trucks. Cross-references multiple Hyster part numbers. Designed for 24VDC drive motor systems.

Compatibility: Fits pallet jacks made by Hyster, model W40Z / 45Z (B218). SKU: HY 1506791-AM

Specifications

Electrical
System Voltage24VDC traction system
Material & Construction
Brush ConstructionPrecision molded graphite-carbon composite
Part Numbers
OEM Part NumberHY 1506791-AM
Manufacturer Part Number1506791
Cross-Reference Part Numbers3061759; 3065066; 3065414; 1461816; 1461205; 4149147; 224741; 1593668
Equivalent Part NumberHY 1506791

Frequently Asked Questions

Q: What is the difference between HY 1506791 and HY 1506791-AM?
A: Both part numbers refer to the same brush set assembly for Hyster 24V traction motors. HY 1506791-AM is the alternate manufacturer designation. They are equivalent parts with identical specifications and fit.

Q: Which Hyster models does the HY 1506791-AM brush set fit?
A: The HY 1506791-AM is compatible with Hyster W40Z and W45Z models with B218 designation (W40Z/45Z B218 frame series) electric pallet jacks. Always verify your truck model plate before ordering.

Q: What cross-reference part numbers can be used instead of HY 1506791-AM?
A: The HY 1506791-AM has multiple cross-reference numbers: 3061759, 3065066, 3065414, 1461816, 1461205, 4149147, 224741, and 1593668. These all reference the identical brush set. Use your truck documentation to confirm which number is specified for your equipment.

Q: What is the brush construction material for the HY 1506791-AM?
A: The HY 1506791-AM brushes use precision molded graphite-carbon composition. This construction provides optimal electrical conductivity and mechanical strength for 24V drive motor commutation cycles.

Q: What is the system voltage for the HY 1506791-AM brush set?
A: The HY 1506791-AM is rated for 24V DC traction systems. Installing this brush set in 12V or 36V systems will cause failure or damage to the motor. Confirm your truck voltage before ordering.

Q: How can I confirm HY 1506791-AM is the correct brush set for my truck?
A: Locate your truck model plate (usually on the mast or frame). Match your exact model to W40Z or W45Z with B218 designation. If your truck matches these models and has a 24V traction system, the HY 1506791-AM is correct. Contact us with your model and serial number to confirm fitment.
