Brush Set for Hyster Electric Pallet Jack
HY 1506791
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

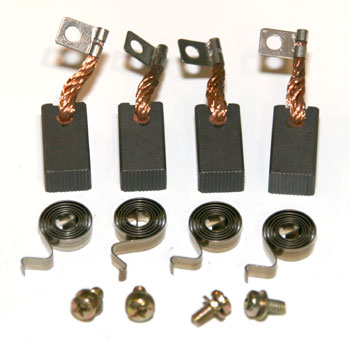

24V Brush Set with Springs for Hyster electric pallet jack traction motors. This carbon-graphite brush and steel spring assembly is engineered for reliable long-term performance in demanding warehouse and dock environments. Designed as a direct replacement for factory-spec motor maintenance, the 1506791 restores full electrical conductivity and commutator engagement in walkie pallet jacks. Compatible with Hyster W40Z, W45Z, and W50Z series electric pallet trucks. High-conductivity composition ensures low electrical resistance and consistent power delivery throughout the 24V system.
Specifications
Part Numbers & Compatibility
| Make | Hyster |
| Model | W40Z, W45Z, W50Z |
| Manufacturer Part Number | HY 1506791 |
| Alternative Part Number | 1506791 |
| Compatible Equipment Models | Hyster W40Z (B218), Hyster W45Z (C215), Hyster W50Z, Hyster W40ZB218, Hyster W45ZB218, Hyster W45ZC215 |
| Applications | Walkie electric pallet truck traction motor brush replacement and maintenance |
Electrical Specifications
| Operating Voltage | 24VDC |
Additional Specifications
| Brush Material | High conductivity carbon-graphite composition |
| Spring Material | Steel (proprietary spring grade) |
| Typical Use | Walkie electric pallet truck traction motor brush replacement and maintenance |
Frequently Asked Questions
Q: Which models is the HY 1506791 compatible with?
A: The HY 1506791 is designed for Hyster W40Z, W45Z, and W50Z electric pallet trucks.
Q: What material are the HY 1506791 brushes made from?
A: The HY 1506791 brushes are constructed from high conductivity carbon-graphite, ensuring low electrical resistance and durability in 24V traction systems.
Q: How do I know when to replace the HY 1506791 brushes?
A: Replace the HY 1506791 brushes if you notice reduced motor power, loss of traction, sparking at the motor, or intermittent operation. Regular inspection is recommended to prevent motor damage.
Q: What voltage system does the HY 1506791 support?
A: The HY 1506791 is designed for use in 24V DC traction systems. It should not be used in 12V or 36V systems.
Q: What are the benefits of using replacement brushes like HY 1506791?
A: Replacement brushes such as the HY 1506791 help maintain optimal electrical conductivity and commutator engagement, ensuring reliable performance in electric pallet trucks.
