Hyster

HY 1506792

HY 1506792

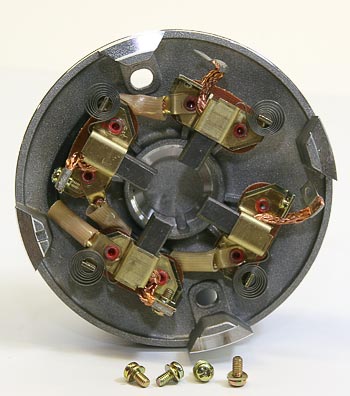

24V Commutator End Bracket for Electric Pallet Jacks

$99,999.00
$99,999.00
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Call for Price Drive Motor Electric Lift Truck Parts Hyster W 40Z 45Z

Compatibility

Make Hyster
Model W 40Z / 45Z (B218)

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Commutator End Bracket, 24V Fits OEM motor

Compatibility: Fits pallet jacks made by Hyster, model W40Z45ZB218. SKU: HY 1506792

Frequently Asked Questions

Q: What is the HY 1506792 commutator end bracket and what voltage does it support?
A: The HY 1506792 is a 24-volt commutator end bracket designed for OEM electric motor applications in material-handling equipment. This bracket provides the structural and electrical interface for the commutator assembly on the motor frame. It is rated for 24V DC systems used in electric lift trucks.

Q: Which Hyster pallet jack models use the HY 1506792 bracket?
A: The HY 1506792 is compatible with Hyster model W40Z45ZB218 electric pallet jacks. Verify the complete model designation and serial range on your equipment before ordering. This bracket is specific to Hyster OEM configurations and may not be interchangeable with other manufacturers.

Q: What is the material composition and durability of this commutator end bracket?
A: The HY 1506792 is constructed from die-cast aluminum with appropriate electrical insulation properties for 24V motor circuits. This material provides adequate rigidity and thermal conductivity for continuous-duty electric motor applications. Standard service life depends on motor runtime and maintenance; brackets typically last the life of the motor assembly if not damaged.

Q: Are there cross-reference part numbers for the HY 1506792?
A: The part number HY 1506792 is the primary Hyster OEM designation. When ordering, always reference this exact SKU to ensure you receive the correct commutator bracket assembly. Do not substitute similar-appearing brackets without confirming dimensional and electrical compatibility with your equipment documentation.
