Hyster

HY 2049316-AM

  • HY 2049316-AM, Drive Motor, 24V, After-market
$62.32 off

HY 2049316-AM

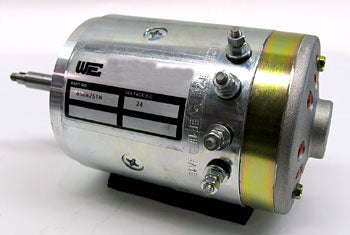

24VDC Traction Motor for Hyster Walkie Pallet Jacks

$810.17
$810.17 $872.49
In stock
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Drive Motor Electric Lift Truck Parts Hyster Motor W 40Z 45Z

Compatibility

Make Hyster
Model W40Z, W45Z

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Hyster HY 2049316-AM is a 24VDC drive motor engineered for electric walkie pallet jacks. This factory-spec compatible traction motor is designed for Hyster W40Z and W45Z series equipment, delivering reliable performance in warehouse and dock environments. Supplied as a direct replacement with verified part number cross-references to ensure proper fit and operation.

Specifications

Electrical Specifications
Motor Voltage24VDC continuous duty
Motor TypeSeries-wound DC motor
Part Numbers
Manufacturer Part NumberHY 2049316-AM
Original Equipment Part Number2049316
Cross-Reference Part NumbersHY2049316-AM, HY2049316AM, 2049316AM
Compatibility
Compatible EquipmentHyster W40Z (B218), Hyster W45Z (C215) electric pallet jacks
ApplicationElectric walkie pallet jack traction motor

Frequently Asked Questions

Q: What does the -AM designation mean on the HY 2049316-AM motor?
A: The -AM designation indicates this is an after-market traction motor engineered to factory specifications. It is a direct replacement for original Hyster motors in W40Z and W45Z pallet jacks. Performance and voltage specifications match factory requirements.

Q: Is the HY 2049316-AM compatible with Hyster W40Z and W45Z pallet jacks?
A: Yes. The HY 2049316-AM is a 24VDC series-wound motor designed for Hyster W40Z (B218) and W45Z (C215) electric pallet jacks. Cross-references include HY2049316-AM, HY2049316AM, 2049316AM, and original equipment part 2049316.

Q: What voltage and duty cycle is the HY 2049316-AM rated for?
A: The HY 2049316-AM operates at 24VDC for continuous duty applications. It is engineered for the sustained loads and operating cycles required in commercial electric pallet jack use.

Q: Can I use the HY 2049316-AM as a direct replacement for a failed motor?
A: Yes. The HY 2049316-AM is supplied as a direct factory-spec replacement with verified mounting and electrical specifications. It uses the same connections, frame dimensions, and performance characteristics as original equipment motors for W40Z and W45Z pallet jacks.

Q: What type of motor is the HY 2049316-AM?
A: The HY 2049316-AM is a series-wound DC motor engineered specifically for electric walkie pallet jack traction drive systems. This design ensures reliable acceleration, load handling, and sustained operation in warehouse and dock environments.
