Hyster 2049316 Drive Motor for W40Z/W45Z Lift Trucks
HY 2049316
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

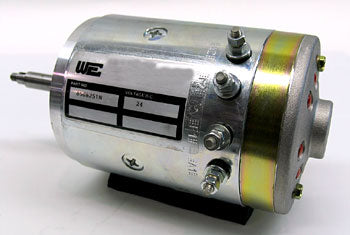

The 2049316 is a 24VDC series-wound drive motor designed for electric pallet jacks. This direct replacement motor is factory-spec compatible with Hyster W40Z and W45Z walkie pallet jacks, featuring a robust steel frame with industrial enamel coating for durability in demanding warehouse environments. The motor operates at continuous duty and mounts using original equipment mounting holes and electrical connections. Cross-reference part numbers include HY2049316-AM, HY2049316AM, and 2049316AM.
Specifications
Part Numbers & Compatibility
| Make | Hyster, Yale |
| Model | W40Z, W45Z |
| Part Number | 2049316 |
| Hyster Part Number | HY 2049316 |
| Cross-Reference Part Numbers | HY2049316-AM, HY2049316AM, 2049316AM |
Electrical Specifications
| Motor Voltage | 24VDC continuous duty |
| Nominal Voltage | 24 volts DC |
Additional Specifications
| Motor Type | Series-wound drive motor |
| Frame Material | Steel with industrial enamel coating |
| Mounting Configuration | Direct replacement mounting for Hyster W40Z/W45Z |
Frequently Asked Questions
Q: Which models is the HY 2049316 compatible with?
A: The HY 2049316 is designed for Hyster W40Z, W45Z, electric lift trucks. Verify your equipment model before ordering to ensure compatibility.
Q: What material is the HY 2049316 made from?
A: The HY 2049316 features a steel frame construction with an industrial enamel coating, ensuring durability in demanding warehouse environments.
Q: What are the cross-reference part numbers for the HY 2049316?
A: The HY 2049316 has alternate part numbers HY2049316-AM, HY2049316AM, and 2049316AM. These numbers identify the same motor for compatibility.
Q: How does the HY 2049316 mount to the equipment?
A: The HY 2049316 mounts directly to Hyster W40Z, W45Z, equipment using original mounting holes and electrical connections.
Q: What is the difference between HY 2049316 and HY 2049316-AM?
A: Both HY 2049316 and HY 2049316-AM are 24VDC series-wound motors for Hyster W40Z, W45Z, lift trucks. The -AM designation indicates after-market supply. Specifications and compatibility are identical.
