Battery Charger for Hyster W40Z/W45Z
HY 2048079
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

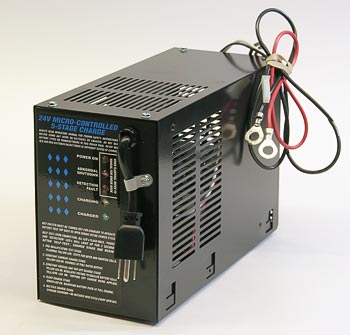

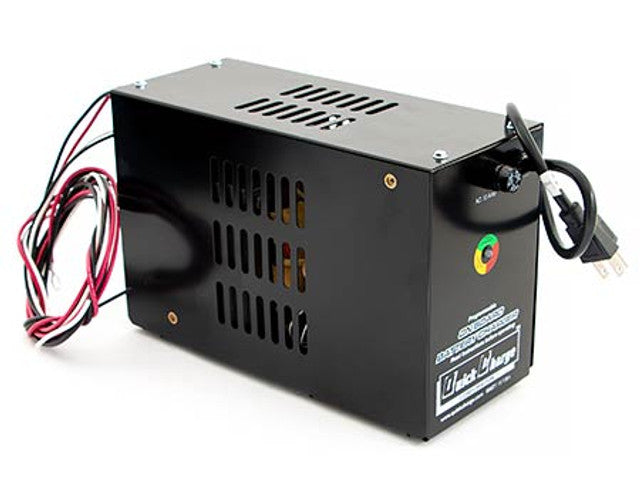

The HY 2048079 Battery Charger is an automatic, microprocessor-controlled 24VDC charger designed for Hyster electric lift truck models W40Z and W45Z. It features on-board mounting configuration, 120VAC single-phase input, and continuous 18A output current with intelligent charging management.
Compatibility: Fits pallet jacks made by Hyster, model W40Z / 45Z (B218). SKU: HY 2048079
Specifications
Part Numbers & Compatibility
| Make | Hyster |
| Model | W40Z, W45Z |
| Manufacturer Part Number | HY 2048079 |
| Alternate Part Numbers | 2048079, HYSTER2048079, HY2048079 |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 18 A |
| Charge Profile | microprocessor-controlled |
| Battery Chemistry | lead-acid |
Additional Specifications
| Nominal Frequency | 60 Hz input frequency |
| Charging Type | Automatic microprocessor-controlled |
| Mounting Configuration | Onboard mount |
Frequently Asked Questions
Q: What Hyster models is the HY 2048079 battery charger compatible with?
A: The HY 2048079 is designed for Hyster W40Z and W45Z electric lift trucks.
Q: What are the electrical specifications for the HY 2048079?
A: The charger operates on 120VAC single-phase input and provides a 24VDC output with 18A continuous current. It uses microprocessor-controlled charging to manage the battery efficiently.
Q: What type of battery does the HY 2048079 charge?
A: The charger is designed for lead-acid batteries commonly used in Hyster W40Z and W45Z electric lift trucks.
Q: What are the cross-reference part numbers for the HY 2048079?
A: The HY 2048079 is also listed as Hyster2048079 or HY2048079. These can be used when searching for compatibility or ordering additional units.
Q: Can the HY 2048079 be used with a different power source?
A: No, the HY 2048079 is rated for 120VAC single-phase input only. Using a different power source may damage the charger and void the warranty.
Q: How does microprocessor-controlled charging benefit battery life?
A: Microprocessor-controlled charging allows the charger to monitor and adjust voltage and current during the process. This helps prevent overcharging, thermal stress, and premature battery failure, extending overall battery life.
Q: What should I do if I need to replace the HY 2048079?
A: When replacing the HY 2048079, ensure you use a compatible replacement part. Always refer to the equipment manual or contact Hyster support for guidance on selecting the correct charger.
