Battery connector assembly for Hyster W40Z, W45Z
HY 2045946
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

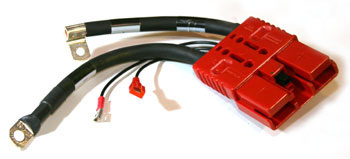

Hyster HY 2045946 is a red battery connector assembly for electric forklift trucks, featuring an Anderson SBX175 connector rated for 24VDC and 175A applications. Compatible models include Hyster W40Z (B218) and W45Z (C215) electric pallet trucks. The connector housing is constructed from glass-filled polycarbonate, with silver-plated copper contacts rated for high cycle durability. Mounts via dual-bolt pattern.
Compatibility: Fits pallet jacks made by Hyster, model W40Z / 45Z (B218). SKU: HY 2045946
Specifications
Part Numbers & Compatibility
| Make | Hyster |
| Model | W40Z, W45Z |
| Voltage Compatibility | 24VDC system applications |
| Part Number | HY 2045946 |
Electrical Specifications
| Battery Connector Type | Anderson SBX175, 175 Amp rated |
| Rated Current Capacity | 175A continuous |
Performance Specifications
| Efficiency Rating | 99% power transmission at rated load |
Additional Specifications
| Flame Retardancy | UL94 V-0 flame retardant (per SBX175 spec) |
| Connector Housing Material | Glass-filled polycarbonate |
| Contact Material | Silver-plated copper |
| Mounting Pattern | Dual-bolt pattern |
Frequently Asked Questions
Q: What is the HY 2045946 battery connector assembly?
A: The HY 2045946 is a battery connector assembly designed for electric lift truck applications. It features an anderson sbx175 connector suitable for 24vdc systems.
Q: Which Hyster electric lift truck models does the HY 2045946 fit?
A: The HY 2045946 is compatible with Hyster W40Z and W45Z electric lift trucks. Verify your equipment model designation before ordering.
Q: What materials and durability features does the HY 2045946 have?
A: The HY 2045946 housing is made from glass-filled polycarbonate with silver-plated copper contacts. It is designed for high cycle durability and meets flame retardant standards.
Q: How do I know if the HY 2045946 is the right replacement part for my equipment?
A: Check your equipment's model designation to confirm compatibility. The HY 2045946 is intended for use with Hyster W40Z and W45Z electric lift trucks.
Q: How is the HY 2045946 installed on equipment?
A: The HY 2045946 is mounted using a dual-bolt pattern, ensuring a secure mechanical connection to the battery circuit assembly.
