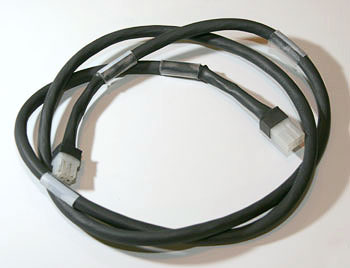

Hyster Handle Wiring Harness for W40Z W45Z
HY 2066432
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Hyster HY 2066432 handle wiring harness is an OEM electrical assembly for tiller handle controls in W40Z and W45Z (B218 Series) electric pallet trucks; constructed with stranded copper wiring and PVC insulation, and designed for reliable multi-conductor signal transmission in 24VDC systems.
Compatibility: Fits pallet jacks made by Hyster, model W40Z 45Z B218. SKU: HY 2066432
Specifications
Part Numbers & Compatibility
| Make | Hyster |
| Model | W40Z, W45Z |
| Part Number | HY 2066432 |
Electrical Specifications
| System Voltage | 24VDC |
| Connector Type | Multi-conductor plug-in connectors, Hyster-specific design |
Additional Specifications
| Wire Type | Stranded copper |
| Insulation Material | Polyvinyl chloride (PVC) |
| Compatible Handle | Factory Hyster tiller handle, B218 chassis |
Frequently Asked Questions
Q: What is the HY 2066432 and where is it used?
A: The HY 2066432 is a replacement handle wiring harness for tiller handle controls on electric pallet trucks. It connects the operator controls on the handle to the truck electrical system, transmitting control signals for steering, lift, and lower functions.
Q: Which Hyster electric pallet truck models use the HY 2066432?
A: The HY 2066432 is compatible with Hyster W40Z and W45Z electric pallet trucks. Confirm your truck model before ordering.
Q: What are the material and durability features of the HY 2066432?
A: The HY 2066432 is constructed with stranded copper wiring for flexibility and durability, and PVC insulation to resist moisture and abrasion. The multi-conductor design carries separate signal and power lines for independent control functions.
Q: What symptoms indicate the HY 2066432 wiring harness is failing?
A: Signs of harness failure include: intermittent loss of steering, lift, or lower control; the handle does not respond to operator input; visible cracks, cuts, or corrosion on the insulation; or water intrusion at connector points causing erratic truck behavior.
Q: Is the HY 2066432 harness compatible with factory Hyster tiller handles?
A: Yes. The HY 2066432 is designed to connect to the factory Hyster tiller handle assembly on W40Z and W45Z trucks. It uses the standard Hyster multi-conductor connector type for seamless plug-and-play fitment.
Q: How do I know if I need to replace the HY 2066432?
A: Replace the HY 2066432 if you experience control issues, visible damage to the wiring, or if the harness is no longer functioning properly. Always confirm compatibility with your specific truck model before ordering.
