Hyster Microswitch for W65Z B60Z B80Z W60Z W80Z W45ZHD W40Z W45Z W50Z B60ZAC B80ZAC
HY 1498102
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

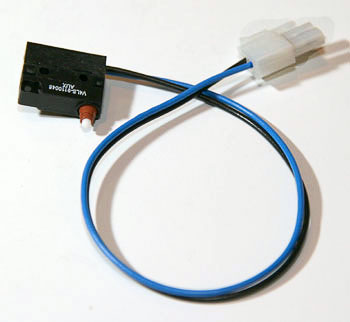

The Hyster 1498102 is a direct replacement on-off microswitch for electric lift truck applications, featuring a Molex-type connector and durable thermoplastic housing. Engineered for reliable operation in control arm assemblies, this switch detects lift mast position and controls electrical functions in the power system of W40Z series pallet trucks. Built for warehouse durability and precise control circuitry.
Specifications
Part Numbers & Compatibility
| Make | Hyster |
| Model | W65Z, B60Z, B80Z, W60Z, W80Z, W45ZHD, W40Z, W45Z, W50Z, B60ZAC, B80ZAC |
| Part Number | 1498102 |
| Hyster Part Number | HY 1498102 |
| Compatible Equipment | Hyster W40Z series electric pallet truck control arm assembly |
Electrical Specifications
| Switch Voltage Rating | 30VDC maximum |
| Switch Current Rating | 5 amperes resistive |
| Connector Type | Molex-type connector |
| Electrical Durability | 100,000 cycles at rated load |
Additional Specifications
| Dielectric Strength | 500VAC, 1 minute (switch body to terminal) |
| Actuator Material | Injection molded nylon |
| Mechanical Durability | 1,000,000 cycles minimum |
Frequently Asked Questions
Q: What models is the HY 1498102 compatible with?
A: The HY 1498102 is designed for Hyster W65Z, B60Z, B80Z, W60Z, W80Z, W45ZHD, W40Z, W45Z, W50Z, B60ZAC, and B80ZAC models. Verify your truck model and serial range before ordering to ensure compatibility.
Q: What is the HY 1498102 used for?
A: The HY 1498102 is an on-off microswitch used in control arm assemblies to detect lift mast position and control electrical functions within the power system of compatible Hyster electric lift trucks.
Q: What are the durability features of the HY 1498102?
A: The HY 1498102 is built for long-term reliability, with a minimum of 1,000,000 mechanical cycles and 100,000 electrical cycles at rated load. It is designed to withstand demanding warehouse environments.
Q: What connector type does the HY 1498102 use?
A: The HY 1498102 features a Molex-type connector with durable thermoplastic housing. This connector type is standard for Hyster control arm assemblies and ensures reliable electrical contact.
Q: What should I do if the HY 1498102 fails?
A: If the microswitch fails, you may experience issues such as erratic lift operation, control arm position sensing errors, or loss of electrical function in the mast assembly. Replace the part as needed to restore proper operation.
