Product Description

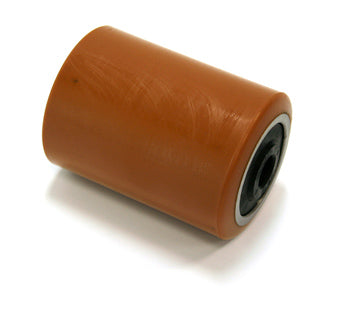

HY 2046054-A is a replacement load wheel assembly for Hyster electric pallet trucks, featuring a 3.25-inch diameter by 4.50-inch width polyurethane tread (95A or 98A durometer), 2.047-inch bore, and pre-installed 6205 sealed bearings. Compatible with Hyster models W40Z, 45Z, and W50Z, this heavy-duty assembly meets or exceeds OEM standards.
Compatibility: Fits pallet jacks made by Hyster, model W40Z. SKU: HY 2046054-A
Specifications
Material
| Wheel Material | Cast Polyurethane Tread |
| Core Material | Machined Steel |
| Polyurethane Hardness | 95A Standard, 98A Heavy-Duty |
| Finish | Machined and Polyurethane-Encapsulated |
Dimensions and Specifications
| Diameter | 3.25 inches |
| Width | 4.50 inches |
| Bore | 2.047 inches |
| Bearing Type | Pre-installed 6205 Sealed Bearings |
Part Numbers
| Direct Replacement Part Number | HY 2046054-A |
| Cross-Reference Part Numbers | Yale 2046054 |
| Compatible Hyster Models | W40Z (B218), 45Z (C215), W50Z |
| Performance Standard | Factory-Spec, Direct Replacement Quality |
Frequently Asked Questions
Q: What Hyster and Yale models are compatible with the HY 2046054-A?
A: The HY 2046054-A fits Hyster W40Z (B218), Hyster 45Z (C215), Hyster W50Z, and Yale pallet jack models that use part number 2046054. Confirm your equipment model documentation before ordering.
Q: What are the exact wheel dimensions for the HY 2046054-A?
A: The HY 2046054-A has a 3.25-inch diameter, 4.50-inch width, 2.047-inch bearing bore, and is supplied with pre-installed 6205 sealed bearings. These dimensions are critical for fitment verification.
Q: Is the HY 2046054-A available in different polyurethane durometers?
A: Yes. The HY 2046054-A is available with 95A or 98A durometer polyurethane. The 95A compound is standard for general applications, while 98A is harder and provides increased wear resistance in heavy-duty environments.
Q: What bearing is used in the HY 2046054-A assembly?
A: The HY 2046054-A features sealed 6205 bearings pre-installed in the hub. These sealed bearings reduce maintenance and provide protection against contamination in typical warehouse and dock environments.
Q: Does the HY 2046054-A cross-reference to Yale parts?
A: Yes. The HY 2046054-A cross-references to Yale part 2046054. This wheel assembly is compatible with Yale electric pallet trucks that specify this part number.
Q: How does the HY 2046054-A compare to other Hyster load wheel variants?
A: The HY 2046054-A meets or exceeds OEM standards for Hyster W40Z, 45Z, and W50Z trucks. It is a direct replacement assembly with integrated bearings and is equivalent to other Hyster variants like HY 2046054-A1, but always verify the exact part number for your serial range.
