Product Description

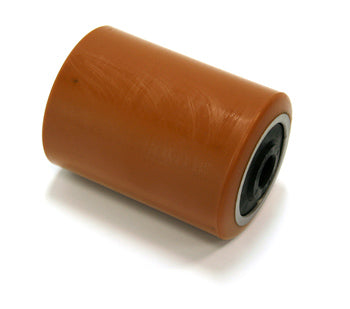

HY 2046054-A1 is a heavy-duty polyurethane load wheel assembly with string guards, designed for Hyster electric lift trucks and compatible Yale models using part 2046054. Features 3.26 inch diameter, 4.29 inch tread width, 4.49 inch hub width, 2.04 inch bearing bore, bearing 6205, and heavy-duty 95A or 98A polyurethane compound for increased durability in electric pallet jack applications.
Compatibility: Fits pallet jacks made by Hyster, model W40Z/45Z(B218). SKU: HY 2046054-A1
Specifications
Part Numbers
| Part Number | HY 2046054-A1 |
| Manufacturer Part Number | HY2046054A1 |
| Cross-Reference Part Numbers | Yale 2046054, replaces HY 2046054-A, equivalent to Falcon 2046054 |
Dimensions & Specifications
| Wheel Diameter | 3.26 inches |
| Tread Width | 4.29 inches |
| Hub Width | 4.49 inches |
| Bearing Bore | 2.04 inches |
| Bearing Type | 6205 sealed bearings |
| Polyurethane Durometer | 95A (standard) or 98A (heavy-duty) |
| Features | Heavy-duty string guards for debris protection |
| Application | Load wheel for electric pallet jacks and lift trucks |
Frequently Asked Questions
Q: Which equipment does the HY 2046054-A1 load wheel fit?
A: The HY 2046054-A1 is compatible with Hyster W40Z (B218), Hyster 45Z (C215), Hyster W50Z, and Yale pallet jack models that use part 2046054. Verify your equipment documentation for the correct part specification.
Q: What are the dimensions of the HY 2046054-A1 wheel assembly?
A: The HY 2046054-A1 measures 3.26 inches in diameter, 4.29 inches tread width, 4.49 inches hub width, and 2.04 inches bearing bore. It includes pre-installed 6205 sealed bearings.
Q: What makes the HY 2046054-A1 different from other HY 2046054 variants?
A: The HY 2046054-A1 includes heavy-duty string guards, which provide extra protection against debris entering the bearing area during operation. This feature increases durability in environments with high levels of floor debris or moisture.
Q: What polyurethane options are available for the HY 2046054-A1?
A: The HY 2046054-A1 is manufactured with 95A or 98A durometer polyurethane. The 95A offers standard wear resistance, while 98A is a harder compound designed for increased durability in high-cycle operations.
Q: What cross-references apply to the HY 2046054-A1?
A: The HY 2046054-A1 replaces HY 2046054-A, is equivalent to Falcon 2046054, and cross-references to Yale 2046054. Always confirm the exact part number required for your specific truck model before ordering.
