Product Description

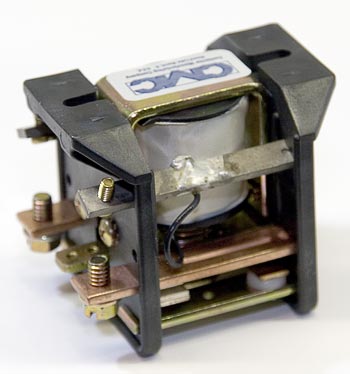

Industrial-grade DC contactor IC2800M610S12A for electric lift trucks, 12VDC coil, SPST-NO contacts, 75A rating, silver alloy tips, continuous duty cycle, panel mount, and direct cross-reference to GEIC2800M610S12A and CTR-12-118 equivalents.
Specifications
Electrical
| Coil Voltage | 12VDC |
| Continuous Current Rating | 75A at 12VDC |
| Electrical Duty Cycle | 100,000 electrical operations rated |
| Dielectric Strength | 1,500V RMS minimum (coil to contacts) |
Material & Construction
| Base Material | Molded thermoset plastic |
| Cover Material | Polycarbonate UL94-V0 non-conductive cover |
Part Numbers
| Manufacturer Part Number | IC2800M610S12A |
| OEM Part Number | GEIC2800M610S12A |
| Cross-Reference Part Numbers | Interchangeable with GEIC2800M610S12A |
| Equivalent Part Numbers | CTR-12-118 |
| Compatible Equipment | Material handling equipment, including electric lift trucks |
Performance
| Service Factor | 1.0 continuous duty |
Frequently Asked Questions
Q: What is the voltage and current rating for the IC2800M610S12A?
A: The IC2800M610S12A is a 12VDC contactor with a 75A continuous current rating. It features single pole single throw normally open (SPST-NO) contacts with silver alloy tips for electric lift truck applications.
Q: What are the equivalent part numbers for the IC2800M610S12A?
A: The IC2800M610S12A is directly interchangeable with GEIC2800M610S12A and has a cross-reference equivalent of CTR-12-118. These part numbers can be used when sourcing replacements.
Q: What contact material is used in the IC2800M610S12A?
A: The IC2800M610S12A uses silver alloy contact tips that provide superior electrical conductivity and arc resistance. Silver alloy contacts are preferred for low-voltage DC applications requiring reliable switching performance.
Q: Is the IC2800M610S12A suitable for continuous duty cycling?
A: Yes, the IC2800M610S12A is rated for continuous duty cycle operation, allowing sustained coil energization without thermal limiting. This supports extended material handling equipment operation on 12VDC systems.
Q: What mounting configuration does the IC2800M610S12A support?
A: The IC2800M610S12A is designed for panel mount installation, providing flexible positioning within electric lift truck electrical cabinets. Verify panel clearance and terminal accessibility before installation.
