Product Description

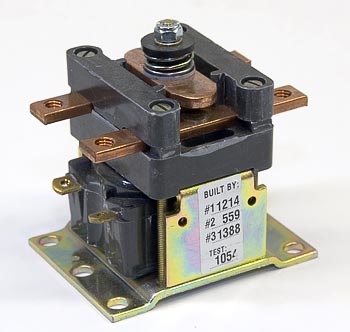

IC4482CTTA100AH Contactor for electric lift trucks features 24VDC coil, 100A continuous current rating, SPST NO contacts, silver alloy contact faces, copper alloy main terminals, and cross-compatibility with GE IC4482CTTA Series. Designed for panel mounting and intermittent duty in industrial and forklift applications.
Specifications
Electrical
| Coil Voltage | 24VDC nominal |
| Main Circuit Voltage Rating | Up to 240VAC |
| Continuous Current Rating | 100A |
Material
| Base Material | Glass-filled phenolic compound |
Part Numbers
| OEM Part Number | IC4482CTTA100AH |
| Cross-Reference Part Numbers | IC4482 100AH, IC4482CTTA, IC4482CTTA150AH, IC4482CTTA300AH, IC4482CTTA100AH124XN |
| Replaces/Supersedes | Supersedes earlier GE IC4482CTTA Series contactors (150AH, 300AH) |
Performance
| Duty Cycle | Intermittent duty, S3 30% ED at 24VDC |
| Mechanical Life | 500,000 cycles (minimum, resistive load) |
| Electrical Life | Up to 100,000 cycles at rated current |
Frequently Asked Questions
Q: What are the voltage and current specifications for IC4482CTTA100AH?
A: The IC4482CTTA100AH has a 24VDC nominal coil voltage and 100A continuous current rating. It features SPST NO (single pole, single throw, normally open) contacts with a main circuit voltage rating up to 24V, designed for panel mounting in industrial and forklift applications.
Q: What other part numbers are in the IC4482CTTA series?
A: The IC4482CTTA series includes IC4482CTTA150AH (150A), IC4482CTTA300AH (300A), and IC4482CTTA100AH124XN variant. This 100AH model supersedes earlier GE IC4482CTTA Series contactors. Choose the amperage that matches your equipment nameplate.
Q: What contact materials are used in this contactor?
A: The IC4482CTTA100AH features silver alloy contact faces with copper alloy main terminals. These materials provide reliable performance in intermittent duty cycles typical of industrial and forklift applications.
Q: Is this contactor rated for continuous or intermittent duty?
A: The IC4482CTTA100AH is designed for intermittent duty in industrial and forklift applications. If your equipment requires a contactor rated for continuous operation at full load, verify duty cycle requirements before ordering.
Q: What is the contact configuration of this contactor?
A: This model uses SPST NO (single pole, single throw, normally open) contact configuration, meaning it has one main power circuit that opens and closes as a single unit. This is the standard configuration for forward-only or simple switching applications in lift trucks.
