Product Description

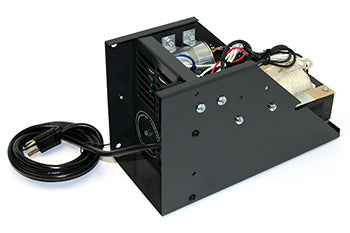

IE-9005 On-Board Charger: 24VDC nominal, 15A continuous output, for electric lift truck applications. Input: 120VAC single phase. Multi-stage automatic charging for compatible 24V lead-acid or deep cycle batteries. On-board mount, powder-coated steel housing. No cross-reference part numbers available.
Specifications
Dimensional
| Mounting Hole Pattern | Four-hole pattern, 4.25 inch x 2.38 inch (center-to-center) |
Electrical
| Input Voltage | 120VAC single phase, 60Hz |
| Output Voltage | 24VDC nominal |
| Output Current | 15A continuous |
| Battery Compatibility | Lead-acid or deep cycle battery, 24V configuration |
| Protection Features | Output short circuit, reverse polarity, overcharge protection |
Part Numbers
| Manufacturer Part Number | IE-9005 |
| OEM Part Number | IE-9005 |
Performance
| Efficiency | ≥ 85% at rated load |
| Service Factor | 1.0 |
Frequently Asked Questions
Q: What are the input and output specifications of the IE-9005 charger?
A: The IE-9005 accepts 120VAC single phase, 60Hz input and delivers 24VDC nominal at 15A continuous output. This makes it compatible with standard commercial power and 24-volt lead-acid or deep cycle battery systems.
Q: Which battery types are compatible with the IE-9005 on-board charger?
A: The IE-9005 is designed for 24-volt lead-acid or deep cycle batteries commonly found in electric lift trucks and pallet jacks. Verify your battery configuration is 24V before ordering.
Q: What protection features does the IE-9005 include?
A: The IE-9005 features multi-stage automatic charging, output short circuit protection, and reverse polarity protection. The powder-coated steel housing provides durability in warehouse and material handling environments.
Q: What mounting configuration does the IE-9005 use?
A: The IE-9005 is designed for on-board mount installation on electric lift trucks. The powder-coated steel housing protects against corrosion and impact in industrial material handling applications.
Q: Is the IE-9005 rated for continuous operation?
A: Yes, the IE-9005 is rated for continuous duty operation at its specified 15A output current. The multi-stage automatic charging system manages charging cycles to optimize battery life and performance.
