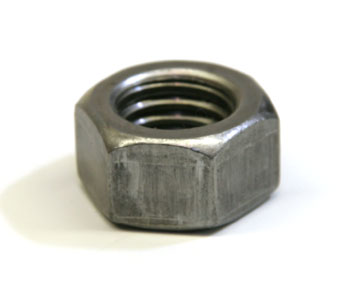

Coarse Thread Nut for Lift-Rite L-50
LF 10224-A-C
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Coarse thread nut designed for Lift-Rite L-50 series manual pallet jack frame assemblies. Constructed from high carbon steel with right-hand coarse thread profile, this fastener secures linkage and push rod components within the pallet jack frame. Not interchangeable with fine thread variants. Provides industrial-duty strength and reliability for repeated lifting cycles and operational stress. Direct replacement component for L-50, L-50 Mini, and L-50 CHEP four-way models.
Specifications
Compatibility
| Applicable Jack Series | Lift-Rite L-50, L-50 Mini, L-50 CHEP (4-way) |
Material & Construction
| Fastener Material | High carbon steel, industrial-duty |
| Finish | Oil protective coating |
Mechanical Specifications
| Thread Type | Coarse thread, right-hand |
| Interchangeability | Not interchangeable with fine thread (LF 10224-A) |
| Component Position | Secures push rod or linkage to L-50 frame |
Part Numbers
| Part Number | LF 10224-A-C |
| Supersedes | LF 10224-A (fine thread, specification not equivalent) |
Frequently Asked Questions
Q: What is the difference between LF 10224-A-C and LF 10224-A?
A: The LF 10224-A-C is a coarse thread nut, while LF 10224-A is fine thread. These components are not interchangeable and serve different frame assembly configurations. Using the incorrect thread type will cause fitment failure.
Q: Which Lift-Rite models use the LF 10224-A-C coarse thread nut?
A: The LF 10224-A-C is designed for Lift-Rite L-50 manual pallet jack models, including the L-50 mini and L-50 CHEP four-way variants. Verify your specific model configuration before ordering.
Q: What material is the LF 10224-A-C constructed from?
A: The LF 10224-A-C is manufactured from high carbon steel with a right-hand coarse thread profile, providing durability and strength for frame assembly applications in manual pallet jacks.
Q: What is the function of the LF 10224-A-C nut in a pallet jack frame?
A: The LF 10224-A-C secures linkage and push rod components within the pallet jack frame assembly. It prevents loosening during repeated lifting cycles and operational stress.
Q: Can the LF 10224-A-C be used on Big Joe pallet jacks?
A: The LF 10224-A-C is specified for Lift-Rite L-50 series models. Big Joe pallet jacks may use different fastener specifications depending on the model. Verify compatibility with your specific equipment before ordering.
