Product Description

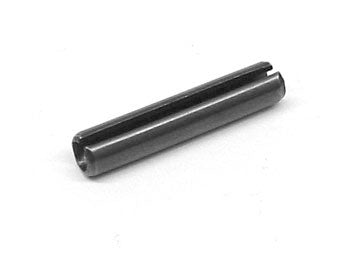

Lift-Rite LF 10209 Roll Pin is a precision spring steel fastener engineered for securing pivot components in Lift-Rite (Big Joe) L-50 Series manual pallet jacks. Manufactured to SAE J403 spring steel standards with slotted design for optimal shear strength, it is dimensioned at 0.312 inch diameter by 1.25 inch length, suitable for high-cycle industrial use and compatible with all L-50 frame configurations.
Compatibility: Fits pallet jacks made by Lift-Rite, model L-50. Alternate model: L50; L 50. SKU: LF 10209
Specifications
Material & Construction
| Pin Material | Spring steel per SAE J403 |
| Pin Hardness | Rockwell C45 minimum |
Part Numbers & Compatibility
| Manufacturer Part Number | LF 10209 |
| OEM Part Number | LF 10209 |
Performance Specifications
| Service Factor | 1.0 for static applications |
Frequently Asked Questions
Q: What are the material and dimensional specifications of the LF 10209 roll pin?
A: The LF 10209 is manufactured from spring steel per SAE J403 standards with a minimum Rockwell hardness of C45. It measures 0.312 inch in diameter and 1.25 inch in length, designed for high-cycle industrial use.
Q: Which Lift-Rite models does the LF 10209 fit?
A: The LF 10209 is compatible with all Lift-Rite L-50 frame series manual pallet jacks. It secures pivot components in the lifting linkage assembly. Alternate model designations include L50 and L 50.
Q: Is the LF 10209 suitable for high-load or outdoor service conditions?
A: The LF 10209 has a service factor of 1.0 for static applications. It is engineered for standard industrial pallet jack loads. For heavy-duty applications or outdoor use, verify load requirements against your equipment specifications.
Q: What is the slotted design of the LF 10209 and why does it matter?
A: The slotted design provides optimal shear strength by allowing spring-back action during installation and removal. This design reduces stress concentration and improves pin longevity in cyclic loading environments.
Q: Can the LF 10209 be used in other Lift-Rite models or competitive brands?
A: The LF 10209 is dimensioned and specified for Lift-Rite L-50 equipment only. Do not substitute in other models without verifying OEM dimensional specifications and load compatibility.
