Product Description

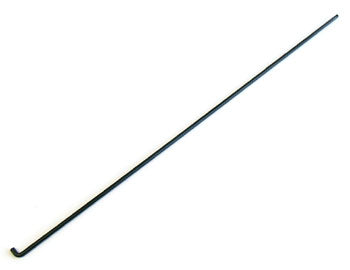

Lift-Rite LF 20274A Control Rod is a precision-formed steel linkage for manual pallet jack control, compatible with Lift-Rite L-55 hydraulic units and supersedes part numbers PL-20274 and PL20274AC. Includes mounting and connection specifications for accurate mechanical operation.
Compatibility: Fits pallet jacks made by Lift-Rite, model L-55. Alternate model: L55; L 55. SKU: LF 20274A
Specifications
Dimensional Specifications
| Assembly Number | PL-20274AC-M1 (Control Rod assembly with subcomponents) |
Material & Construction
| Material Specification | Steel control rod, precision formed |
Mechanical Specifications
| Associated Subcomponents | Works with adjusting nut PL90571, split pin PL20274RB, roller PL20274RA |
| Mounting Connection | Attaches via pin PL20274P to lever/control mechanism |
Part Numbers & Compatibility
| Manufacturer Part Number | LF 20274A |
| OEM Part Number | PL20274A |
| Alternate Part Numbers | PL-20274A, PL20274AC |
| Supersedes/Replaces | PL-20274, PL20274 |
| Assembly Reference | PL-20274AC-M1 (Control Rod assembly) |
| Compatible Models | Lift-Rite L-55 Manual Pallet Jack (including hydraulic unit L-55) |
| Cross-Reference Part Numbers | PL20274A, PL-20274AC |
Performance Specifications
| Service Application | Manual actuation for Lift-Rite L-55 series hydraulic control |
Frequently Asked Questions
Q: What equipment does the LF 20274A control rod fit?
A: The LF 20274A is a precision-formed steel linkage for manual pallet jack control. It is compatible with Lift-Rite L-55 hydraulic units and manual pallet jacks. Verify your equipment model matches L-55 or L55 before ordering.
Q: What are the cross-reference and superseded part numbers for LF 20274A?
A: The LF 20274A supersedes and replaces PL-20274, PL20274, and PL20274AC. Alternate part numbers include PL-20274A and PL20274AC. The assembly reference is PL-20274AC-M1. Use these cross-references when searching for equivalent or legacy inventory.
Q: What is the material composition of the LF 20274A control rod?
A: The LF 20274A is manufactured from precision-formed steel. This material provides durability and strength for repetitive mechanical operation in hydraulic control linkages used on manual pallet jacks.
Q: What mounting and connection specifications should I verify for the LF 20274A?
A: The LF 20274A includes mounting and connection specifications for accurate mechanical operation within the hydraulic control system. Review the assembly reference PL-20274AC-M1 and cross-check dimensions and hole patterns against your equipment documentation before ordering to ensure proper fitment.
Q: What is the expected lifespan and maintenance for this control rod?
A: As a precision linkage in a hydraulic system, the LF 20274A experiences repetitive motion and stress. Lifespan depends on usage frequency and operating conditions. Regular inspection for wear, corrosion, or bending is recommended. Contact us if you observe sluggish control response or mechanical binding.
