Product Description

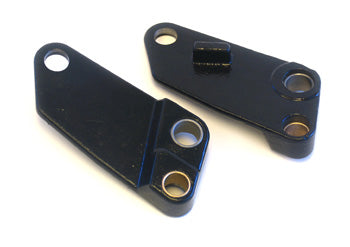

Load Wheel Bracket Assembly LF PN20212 is an OEM-fit, high-strength carbon steel bracket designed for Lift-Rite manual pallet jack LCR55 forklifts and compatible Big Joe variants. Accepts PL-20203A bushings and PL-20214 bearings, with a rated load capacity of 5000 lbs at 24 inch load center.
Compatibility: Fits pallet jacks made by Lift-Rite, model LCR55. SKU: LF PN20212
Specifications
Material & Construction
| Material Specification | High-strength carbon steel, precision stamped |
| Hardness | Treated to minimum Rockwell B80 core |
| Finish | Industrial powder coat finish |
Part Numbers
| Manufacturer Part Number | LF PN20212 |
| OEM Part Number | PL20212 |
| Cross-Reference Part Numbers | LRPN-20212, LFPN-20212, LF PN-20212 |
| Equivalent Part Numbers | PL-20212, PL20212 |
| Compatible Models | Fits Lift-Rite manual pallet jack LCR55 series and compatible Big Joe hand pallet truck variants |
Performance Specifications
| Service Factor | 1.00 at rated pallet jack loading |
Frequently Asked Questions
Q: What is the load capacity of the LF PN20212 bracket assembly?
A: The LF PN20212 load wheel bracket assembly has a rated load capacity of 5000 lbs at a 24 inch load center. This capacity is valid only when used with OEM-specified wheels, bearings, and on level floors within design operating conditions.
Q: Which pallet jack models are compatible with the LF PN20212?
A: The LF PN20212 is designed for Lift-Rite LCR55 manual pallet jacks and compatible Big Joe hand pallet truck variants. Cross-reference part numbers include LRPN-20212, LFPN-20212, and PL-20212. Verify your model number and part number against your equipment documentation.
Q: What material is the LF PN20212 bracket made from?
A: The LF PN20212 is manufactured from high-strength carbon steel. Carbon steel provides excellent durability under repetitive load cycling, impact resistance from floor contact, and long service life in warehouse and cold storage environments.
Q: What bearing and bushing components does the LF PN20212 accept?
A: The LF PN20212 bracket is engineered to accept PL-20203A bushings and PL-20214 bearings. These components must be used as specified. Using non-OEM or incompatible bearings and bushings will compromise load capacity and frame integrity.
Q: How do I know if my LF PN20212 bracket is damaged and needs replacement?
A: Signs of bracket failure include visible cracks, permanent bending, excessive vertical or horizontal wheel play that cannot be corrected by bearing adjustment, or noise from the load wheel assembly during operation. A damaged bracket compromises load capacity and must be replaced.
Q: What is the typical service life of the LF PN20212 bracket assembly?
A: Under normal warehouse use with routine maintenance and inspection, the LF PN20212 bracket typically lasts 7 to 10 years or more. Harsh surface conditions, impacts, and inadequate load wheel lubrication reduce service life.
