Product Description

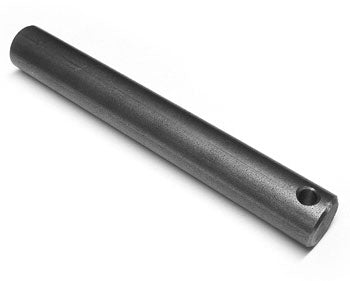

Lift-Rite LF PL90515 axle is an OEM frame component for manual pallet jacks used in LRP 5000 series and compatible Big Joe models. Manufactured from carbon steel with a machined finish, this axle mounts rollers or wheels for load support. It is designed to press-fit into the pallet jack frame, secured by fasteners such as split pins or locking rings, supports up to 5000 lbs load at a 24 inch load center, and fits a 27 inch wide frame assembly with nominal 48 inch fork length. No cross-reference
Compatibility: Fits pallet jacks made by Lift-Rite, model LRP 5000. SKU: LF PL90515
Specifications
Material & Construction
| Axle Material | Carbon steel, machined finish |
| Surface Finish | Machined bare steel, uncoated |
Part Numbers & Compatibility
| Manufacturer Part Number | LF PL90515 |
| OEM Part Number | PL90515 |
| Compatible Lift-Rite Models | LRP 5000 series manual pallet jack |
| Compatible Big Joe Models | Big Joe branded LRP 5000 series |
Frequently Asked Questions
Q: What is the load capacity of the LF PL90515 axle?
A: The LF PL90515 is rated to support up to 5000 lbs load at a 24 inch load center. This rating applies to Lift-Rite LRP 5000 series and compatible Big Joe branded equipment with a 27 inch wide frame and nominal 48 inch fork length.
Q: What pallet jack models does the LF PL90515 fit?
A: The LF PL90515 is an OEM axle for Lift-Rite LRP 5000 series manual pallet jacks and Big Joe branded LRP 5000 series trucks. Confirm your frame assembly is 27 inches wide with 48 inch fork length for proper fit.
Q: What material is the LF PL90515 made from?
A: The LF PL90515 is manufactured from carbon steel with a machined finish and bare, uncoated surface. This material provides strength for mounting load support rollers or wheels.
Q: How does the LF PL90515 mount to the pallet jack frame?
A: The LF PL90515 uses a press-fit design that seats into the pallet jack frame and is secured with fasteners such as split pins or locking rings. Refer to your equipment assembly diagrams for precise mounting locations.
Q: Are there cross-reference or superseding part numbers for the LF PL90515?
A: No cross-reference or superseding part numbers are documented for the LF PL90515. The OEM part number is PL90515. Use the exact SKU LF PL90515 when ordering.
