Product Description

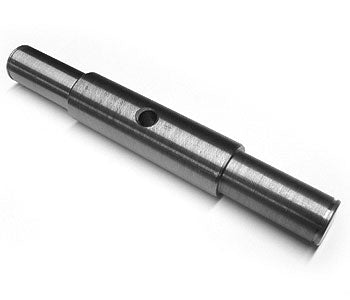

Lift-Rite LF 220310 Axle is an OEM control handle axle designed for manual pallet trucks (PST23 series). Manufactured from carbon steel, it secures and allows rotation of the control handle assembly, interfacing with the main bracket and bushing to ensure reliable load transfer and operational durability. This axle installs with a locking pin; cross-reference numbers are not published. All specifications reflect original manufacturer design where listed and standard pallet jack axle requirements
Compatibility: Fits pallet jacks made by Lift-Rite, model Titan Series. Alternate model: Titan Serie. SKU: LF 220310
Specifications
Mechanical Specifications
| Mounting Location | Fits control handle bracket on PST23 chassis |
| Thread Type | None; plain axle without threaded ends |
Part Numbers & Compatibility
| Manufacturer Part Number | LF 220310 |
| OEM Part Number | LF 220310 |
| Compatible Models | Lift-Rite PST23 series manual pallet trucks |
Frequently Asked Questions
Q: What is the LF 220310 axle designed to do?
A: The LF 220310 is an OEM control handle axle for Lift-Rite PST23 series manual pallet trucks. It secures the control handle assembly and allows rotation, interfacing with the main bracket and bushing to enable smooth handle articulation during load transfer.
Q: What material is the LF 220310 axle made from?
A: The LF 220310 is manufactured from carbon steel per Lift-Rite OEM specifications. This material provides the strength and wear resistance required for repeated handle rotation and load-bearing applications in manual pallet trucks.
Q: Which pallet jack models use the LF 220310 axle?
A: The LF 220310 axle is compatible with Lift-Rite PST23 series manual pallet trucks. It mounts on the control handle bracket assembly. Verify your truck model matches PST23 before ordering.
Q: Is the LF 220310 a plain axle or threaded?
A: The LF 220310 is a plain axle without threaded ends. It is a solid steel pin that rotates freely within the bracket and bushing assembly and is secured using a locking pin.
Q: What dimensions should I verify for the LF 220310 axle?
A: Verify the axle diameter and length match your PST23 control handle bracket assembly before ordering. OEM dimensions are designed for precise fitment with the bracket bore and bushing. Cross-reference with your equipment documentation or contact us for exact specifications.
Q: When should the LF 220310 axle be replaced?
A: Replace the LF 220310 axle if the handle exhibits excessive play or does not rotate smoothly, if you observe visible bending or scoring on the pin surface, or if the control handle separates from the truck chassis. A worn axle reduces operator control and safety.
