Product Description

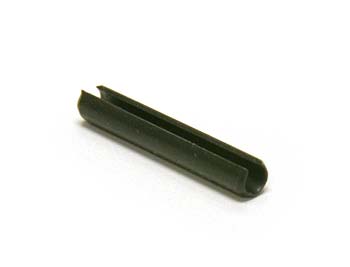

Lift-Rite LF 20461 split pin component for Titan Series hydraulic units in manual pallet jacks. OEM retention hardware for control rod assembly and pump mechanism. Compatible with standard Lift-Rite and Big Joe manual pallet jack models.
Compatibility: Fits pallet jacks made by Lift-Rite, model Titan Series. Alternate model: Titan Serie. SKU: LF 20461
Specifications
Part Numbers
| Manufacturer Part Number | LF 20461 |
| Assembly Position Reference | Item 8 in hydraulic unit assembly diagram |
| Related Components | Works with control rod assembly LF 215775 and axle LF 47930 |
Frequently Asked Questions
Q: What equipment and model does the LF 20461 split pin fit?
A: The LF 20461 is a split pin component for Lift-Rite Titan Series hydraulic units used in manual pallet jacks. This is an OEM retention hardware component that serves as a mechanical fastener within the pump assembly.
Q: What is the functional role of the LF 20461 split pin in the hydraulic assembly?
A: The LF 20461 split pin provides positive retention and prevents unintended rotation or axial movement of components within the Titan Series hydraulic unit. It secures the control rod assembly and pump mechanism during operation. The split pin design allows for quick installation and removal without special tools.
Q: What other components work with the LF 20461 split pin?
A: The LF 20461 works in conjunction with control rod assembly LF 215775 and axle LF 47930 within the Titan Series pump. These components form the mechanical linkage and pressure transmission path of the hydraulic unit. The split pin holds these elements in precise alignment.
Q: When is the LF 20461 split pin replaced?
A: Replace the LF 20461 if it becomes bent, broken, or corroded. A damaged split pin can cause loss of component retention, resulting in pump misalignment and failure. The pin should be inspected during routine maintenance or whenever the pump assembly is disassembled. If corrosion is visible, replace it to maintain positive retention.
Q: Is the LF 20461 a common wear item?
A: The LF 20461 split pin is not typically a wear item. It remains functional for the life of the pump under normal operating conditions. Replacement is usually required only after impact damage, corrosion, or accidental loss. Stock a spare when performing major pump service to avoid downtime if the pin cannot be recovered.
