Product Description

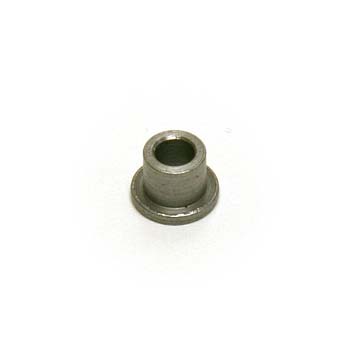

The LF 49513 is a hydraulic spring guide component designed for Lift-Rite Big Joe Titan Series manual pallet jacks. This precision part installs between the compression spring and piston assembly to center and retain the spring, ensuring proper hydraulic function and load control in the lift mechanism. Essential component for rebuilding or maintaining the lowering valve hydraulic assembly.
Specifications
Hydraulic System
| Part Type | Spring Guide / Spring Retention Component |
| Associated Components | Works with U-Cup seal (LF 22318), piston assembly (LF 47051), compression spring (LF 47071) |
| Related Assembly Kit | Part of lowering valve kit assembly (LF 215776) |
Part Numbers & Compatibility
| Primary Part Number | LF 49513 |
| Cross-Reference Numbers | Life Rite 49513, LF49513, LR49513 |
| Compatible Equipment | Lift-Rite Big Joe Titan Series manual pallet jacks |
Frequently Asked Questions
Q: What does the LF 49513 spring guide do?
A: The LF 49513 is a hydraulic spring retention component that installs between the compression spring (LF 47071) and the piston (LF 47051) in the lift mechanism. It centers and guides the spring to maintain proper hydraulic function.
Q: Which Lift-Rite models use the LF 49513?
A: The LF 49513 is designed for Lift-Rite Big Joe Titan Series manual pallet jacks. It is part of the hydraulic assembly that controls the lowering valve.
Q: What are the cross-reference part numbers for the LF 49513?
A: Cross-reference numbers include Life Rite 49513, LF49513, and LR49513. Verify the part number matches your equipment documentation before ordering.
Q: What components work with the LF 49513 in the hydraulic assembly?
A: The LF 49513 works with the U-Cup seal LF 22318, the piston assembly LF 47051, and the compression spring LF 47071. It is part of the complete lowering valve kit assembly LF 215776.
Q: How often should the LF 49513 be replaced?
A: Replace the LF 49513 when the pallet jack begins to lower slowly, will not hold load, or if you are rebuilding the hydraulic assembly. If the spring guide is damaged or scored, replacement is necessary to maintain proper seal contact and pressure regulation.
Q: Is the LF 49513 part of a seal kit or purchased separately?
A: The LF 49513 is typically part of the lowering valve kit assembly (LF 215776) but may also be available as an individual component. Confirm your required assembly before ordering.
