U-Cup Hydraulic Seal for Lift-Rite Titan Series
LF 22318
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

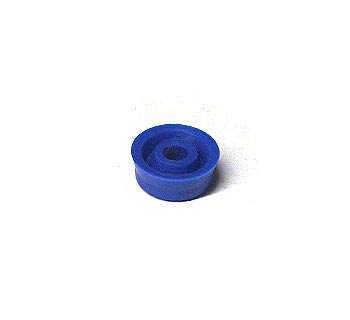

Lift-Rite LF 22318 U-Cup is an oil-resistant hydraulic piston seal for manual pallet jack hydraulic units, designed to retain fluid pressure in the pump assembly and prevent bypass. This elastomeric U-cup is specified for Lift-Rite manual pallet trucks and installs axially within the hydraulic piston bore. Suitable for operation with mineral oil-based hydraulic fluids from -20°C to 80°C.
Compatibility: Fits pallet jacks made by Lift-Rite, model Titan Series. Alternate model: Titan Serie. SKU: LF 22318
Specifications
Material & Construction
| Seal Hardness | 70 Shore A nominal |
Mechanical Specifications
| Functional Application | Retains hydraulic pressure in pump piston assembly for manual pallet trucks |
| Primary Function | Prevents hydraulic fluid bypass and maintains pressure during lifting operation |
Part Numbers & Compatibility
| OEM Part Number | LF 22318 |
| Manufacturer Part Number | 22318 |
Frequently Asked Questions
Q: What does the LF 22318 U-Cup seal do?
A: The LF 22318 is an oil-resistant elastomeric U-cup seal that retains hydraulic pressure in the pump piston assembly of Lift-Rite manual pallet trucks. It prevents hydraulic fluid bypass and maintains pressure during lifting operations.
Q: Which Lift-Rite models use seal LF 22318?
A: The LF 22318 is specified for Lift-Rite Titan Series manual pallet trucks. Confirm your jack model designation matches Titan Series before ordering this seal.
Q: What temperature range is the LF 22318 U-Cup rated for?
A: The LF 22318 operates from -20 degrees Celsius to 80 degrees Celsius when used with mineral oil-based hydraulic fluids. This range covers typical warehouse and cold storage environments.
Q: What is the Shore A hardness of the LF 22318 seal?
A: The LF 22318 has a nominal Shore A hardness of 70. This elastomeric hardness is specified to balance fluid sealing performance with piston bore fit.
Q: How is the LF 22318 U-Cup installed in the pump assembly?
A: The LF 22318 installs axially within the hydraulic piston bore. Do not force or stretch the seal during installation. Verify bore dimensions match the seal specification before assembly.
Q: What hydraulic fluid works with the LF 22318 seal?
A: Use mineral oil-based hydraulic fluids compatible with the Lift-Rite pump specification. Do not use synthetic fluids or non-mineral formulations unless they are explicitly approved by Lift-Rite, as incompatible fluids degrade elastomer seals.
