Product Description

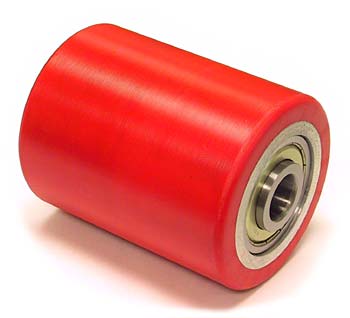

Blue Giant MT-50 load roller assembly featuring 17mm bearing bore, available in multiple tread and hub material configurations including ultra-polyurethane, nylon, steel, and aluminum options. Complete assembly includes integrated bearings, washers, and bushings for manual pallet jack frame mounting applications.
Compatibility: Fits pallet jacks made by Blue Giant, model MT50. SKU: BG 906-0023
Specifications
Material & Construction
| Alternative Tread Materials Available | Nylon, Steel, Ultra-Polyurethane |
| Alternative Hub Materials Available | Nylon, Steel, Aluminum |
Part Numbers & Compatibility
| OEM Part Number | BG 906-0023 |
| Cross-Reference Part Numbers | BG906-0023, 906-0023 |
| Variant Part Numbers | BG 906-0023-N-A (Nylon/Nylon), BG 906-0023-S-A (Steel/Steel), BG 906-0023-P-A (Ultra-Poly/Steel), BG 906-0023-D-A (Ultra-Poly/Aluminum) |
Frequently Asked Questions
Q: What is the BG 906-0023 and what pallet jack models does it fit?
A: The BG 906-0023 is a complete load roller assembly for Blue Giant MT-50 manual pallet jacks. The assembly features a 17mm bearing bore and includes integrated sealed ball bearings, washers, and bushings for direct frame mounting. This is a universal base SKU; however, material variants (tread and hub combinations) are available to match specific application requirements and load conditions.
Q: What tread and hub material options are available for the BG 906-0023 load roller?
A: The BG 906-0023 is available in four material configurations: BG 906-0023-N-A (nylon tread, nylon hub), BG 906-0023-S-A (steel tread, steel hub), BG 906-0023-P-A (ultra-polyurethane tread, steel hub), and BG 906-0023-D-A (ultra-polyurethane tread, aluminum hub). Select based on floor conditions: nylon for general indoor use, steel for heavy-duty, ultra-polyurethane for wet or cold storage environments.
Q: What are the cross-reference part numbers for the BG 906-0023?
A: Cross-reference the BG 906-0023 using these alternate part numbers: BG906-0023 and 906-0023. Each material variant also has its own specific SKU (N-A, S-A, P-A, D-A suffixes). When ordering, specify both the base SKU and the material variant suffix to ensure correct tread and hub composition ships.
Q: What bearing specifications does the BG 906-0023 load roller include?
A: The BG 906-0023 features a 17mm bearing inside diameter with sealed ball bearings integrated into the assembly. The sealed design provides protection against water, dust, and contamination common in warehouse and cold storage environments. Bearings are pre-installed and lubricated; the assembly is ready for frame mounting without additional bearing component sourcing.
Q: What is the typical load rating for the BG 906-0023 load roller assembly?
A: The BG 906-0023 is engineered for continuous-duty operation up to 5500 lbs, consistent with Blue Giant MT-50 rated capacity. Load roller durability depends on material configuration: nylon assemblies suit light-to-medium duty, steel for maximum durability, and ultra-polyurethane for balanced load capacity with enhanced floor protection and wet-floor traction.
