Product Description

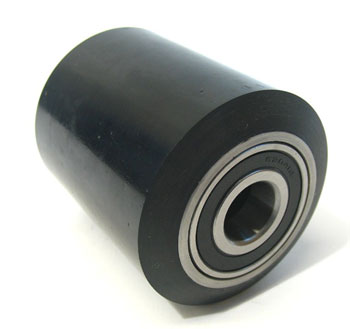

GW L27 Load Roller Assembly with Ultra Polyurethane tread and steel core, engineered for manual pallet jack load wheel position. OEM part number GW L27. Compatible with select Liftsplus.com manual pallet trucks. Cross-reference part numbers not available.
Load Wheel Assembly - 3 in Diam, 3.5 in Width, 6204RS Bearing, Poly Tread
Specifications
Part Numbers
| OEM Part Number | GW L27 |
| Manufacturer Part Number | GW L27 |
Frequently Asked Questions
Q: What are the dimensions and bearing specifications of the GW L27?
A: The GW L27 load roller assembly measures 3 inches in diameter by 3.5 inches in width. It is equipped with a 6204RS bearing, which is a deep-groove ball bearing with rubber seals on both sides. The RS designation means sealed bearing, providing good protection against contamination in warehouse environments.
Q: Which manual pallet jacks use the GW L27 assembly?
A: The GW L27 is compatible with select manual pallet jack models from Crown, Toyota, Raymond, Yale, and similar manufacturers. It is designed for the load wheel position in the main wheel frame. Verify your equipment model against the GW L27 specification sheet or consult your pallet jack service documentation to confirm compatibility before ordering.
Q: What materials are used in the GW L27 load roller?
A: The GW L27 features an ultra-polyurethane tread bonded to a steel core. The polyurethane compound provides wear resistance and traction, while the steel core adds strength and stability. This combination is ideal for load wheels that carry the weight of lifted loads and must resist flattening during use.
Q: How do I replace the GW L27 on my manual pallet jack?
A: Replacement procedure varies by pallet jack model. Generally, you will need to remove the main wheel assembly by unbolting or pressing off the existing wheel, then install the GW L27 by reversing the process. Inspect the axle for damage or wear. Ensure washers and retaining rings are in place. Consult your pallet jack service manual for specific steps and torque specifications.
Q: What is the bearing ID for the 6204RS and is it replaceable?
A: The 6204RS bearing is a standard industrial deep-groove ball bearing with a 20mm bore and sealed design. The bearing is an integrated component of the GW L27 assembly and is not replaceable as a separate service item. If the bearing fails, the entire wheel assembly must be replaced to ensure proper fitment and performance.
Q: How long does the GW L27 wheel assembly typically last?
A: Lifespan depends on load weight, floor conditions, and maintenance. In typical manual pallet jack service, the GW L27 can last 24 to 48 months or more. Steel core and ultra-polyurethane resist flattening and abrasion. Monitor tread wear and bearing play. Replace the assembly when tread is worn to 50 percent or if the bearing shows excess noise or lateral play.
