Product Description

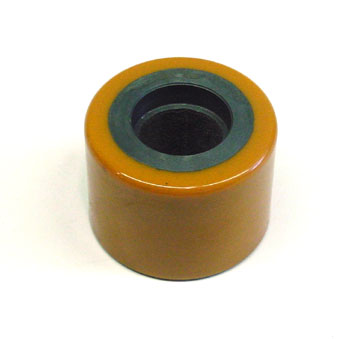

Raymond RA 631-031 is a polyurethane load roller designed for electric reach truck applications, featuring a 4.000 inch OD, 2.880 inch width, 2.047 inch bore, and Durarun 95A compound. Direct replacement for Raymond 7200/7300/7400/7500/7600 series Reach-Fork® and RSS/RRS Walkie reach truck models. Cross-reference and supersedes RA 631-031-001, RA 631-031-007, RA 631-031-107, and associated part numbers.
Specifications
Dimensions
| Outer Diameter | 4.000 inch |
| Width | 2.880 inch |
| Bore | 2.047 inch |
Material
| Tread Material | Polyurethane compound, 95A Shore Durometer |
| Core Material | Steel |
| Compound | Durarun 95A |
Part Numbers
| Part Number | RA 631-031 |
| Manufacturer Part Number | RA631-031 |
| Cross-Reference Part Numbers | RA 631-031-001, RA 631-031-007, RA 631-031-107, RA631031001, RA631031007, RA631031107, 631031001, 631031007, 631031107 |
| Equivalent Part Numbers | RA 631-031-107-A, RA631-031-107-A, 631031107A |
Compatible Equipment
| Raymond Series | 7200, 7300, 7400, 7500, 7600 Series Reach-Fork® Trucks; RRS and RSS Walkie Reach Trucks |
Frequently Asked Questions
Q: What Raymond electric reach truck models does the RA 631-031 load roller fit?
A: The RA 631-031 is a direct replacement for Raymond 7200, 7300, 7400, 7500, and 7600 series Reach-Fork trucks and RSS and RRS Walkie reach truck models. Verify your truck series number and model badge before ordering.
Q: What are the dimensions and bore specifications for this load roller?
A: Outside diameter is 4.000 inches, width is 2.880 inches, and bore diameter is 2.047 inches. These dimensions are required for fitment to your reach truck load wheel assembly and must be verified against your equipment specifications.
Q: What polyurethane compound is used in the RA 631-031?
A: The RA 631-031 features Durarun 95A polyurethane compound. The 95A durometer rating indicates a hard compound suitable for load-carrying applications. This polyurethane formulation provides excellent wear resistance and durability in reach truck load roller applications.
Q: What parts does the RA 631-031 supersede or replace?
A: The RA 631-031 replaces and cross-references RA 631-031-001, RA 631-031-007, RA 631-031-107, and associated part number variants. These are older part number formats; the RA 631-031 is the current specification.
Q: What is the core material used in the RA 631-031 load roller?
A: The load roller features a steel core bonded with the Durarun 95A polyurethane tread. The steel core provides structural strength and durability for load-bearing applications in reach truck service.
Q: Are there different versions or suffix variations of the RA 631-031?
A: Yes, equivalent part numbers include RA 631-031-107-A and RA631-031-107-A. These variations reference the same Durarun 95A compound roller with the same core material and dimensions, suitable for Raymond reach truck applications.
