Product Description

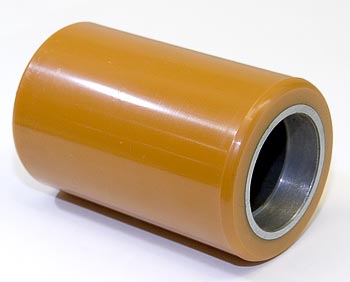

Hyster HY 3012707 is a polyurethane load wheel for electric pallet trucks, featuring a 3.25 inch diameter, 5.00 inch tread width, and 2.047 inch bore, compatible with Hyster W40XL/W40XT models and equivalent to HY3012707-A, HY3012707-XL, and 310700-203-KIT.
Specifications
Material & Construction
| Hardness | Shore 95A |
Part Numbers
| OEM Part Number | HY 3012707 |
| Manufacturer Part Number | HY 3012707-A |
| Cross-Reference Part Numbers | HY3012707-A, HY 3012707-XL, 310700-203-KIT |
| Compatible Equipment | Hyster electric pallet jack, including models W40XL and W40XT |
| Supersedes/Replaces | Supersedes HY 3012707-XL, replaces 310700-203-KIT |
Frequently Asked Questions
Q: What are the exact dimensions of the HY 3012707 load wheel?
A: The HY 3012707 has a 3.25 inch diameter, 5.00 inch tread width, and 2.047 inch bore. These specifications are critical for fitment on Hyster W40XL and W40XT models. Always verify your equipment bore and wheel mounting dimensions before ordering.
Q: Which Hyster models does the HY 3012707 fit?
A: The HY 3012707 is compatible with Hyster W40XL and W40XT electric pallet jacks. Cross-reference part numbers HY3012707-A, HY3012707-XL, and 310700-203-KIT also fit these same models. Confirm your specific serial number range falls within the compatible range before purchase.
Q: What material and hardness does the HY 3012707 have?
A: The HY 3012707 is constructed from polyurethane with a Shore 95A hardness rating. This compound provides durability and floor traction suitable for warehouse and dock environments. The 95A durometer is standard for load wheels handling typical pallet jack duty cycles.
Q: Are there equivalent part numbers for the HY 3012707?
A: Yes. The HY 3012707 has several cross-reference part numbers: HY3012707-A, HY3012707-XL, and 310700-203-KIT. The HY3012707-XL is an older designation that has been superseded by the current HY 3012707. Verify your equipment parts manual to confirm which designation applies to your specific serial range.
Q: What should I do if the HY 3012707 develops flat spots or uneven wear?
A: Flat spotting or uneven wear indicates the wheel should be replaced. Continued operation with damaged wheels can stress bearings and reduce pallet jack maneuverability. Replace all four load wheels at the same time if any show significant wear to maintain balanced operation.
