Product Description

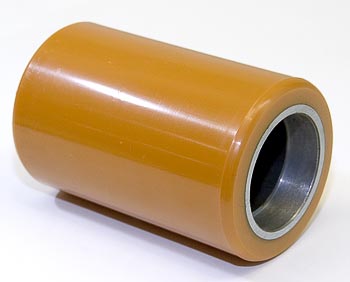

Technical specification for Hyster HY 1196605 load wheel: 3.25 inch diameter, 5.00 inch width, 2.047 inch bore, 95A polyurethane tread on cast iron core, compatible with electric lift trucks using HY 1196605 specification. Equivalent part numbers HY 1196605-A, HY 1196605-XL. Designed for heavy-duty material handling applications; precise machining for optimal fitment.
Specifications
Material & Construction
| Tread Material | 95A hardness polyurethane |
| Core Material | Cast iron wheel core |
| Construction Method | Polyurethane bonded to cast iron |
| Polyurethane Hardness | 95 Shore A (ASTM D2240) |
Part Numbers & Compatibility
| OEM Part Number | HY 1196605 |
| Manufacturer Part Number | HY1196605 |
| Equivalent Part Number | HY 1196605-A |
| Supersedes/Replaces Part Numbers | HY 1196605-A, HY 1196605-XL |
Frequently Asked Questions
Q: What are the dimensions of the HY 1196605 load wheel?
A: The HY 1196605 has a 3.25 inch diameter, 5.00 inch width, and 2.047 inch bore. Verify these dimensions match your lift truck specifications before ordering.
Q: What material and hardness does the HY 1196605 use?
A: The HY 1196605 features a 95A hardness polyurethane tread bonded to a cast iron core. The 95A durometer rating provides optimal grip and wear characteristics for electric lift truck operations.
Q: What are the equivalent part numbers for the HY 1196605?
A: The HY 1196605 is equivalent to HY 1196605-A and HY 1196605-XL. Any of these part numbers will provide the same specifications and performance.
Q: Is the HY 1196605 designed for heavy-duty applications?
A: Yes. The HY 1196605 uses precision machining and a cast iron core with 95A polyurethane bonding, making it suitable for heavy-duty material handling. The cast iron construction provides durability and load support.
Q: Which Hyster lift truck models are compatible with the HY 1196605?
A: The HY 1196605 is designed for Hyster electric lift trucks. Confirm compatibility with your specific model and serial range by comparing equipment specifications with the OEM part number.
