Product Description

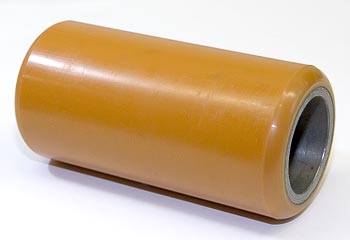

Hyster HY 3012710 load wheel features a 3.25 inch diameter and 6.50 inch width, constructed of 97A hardness polyurethane. Designed for Hyster electric pallet trucks and stackers, this replacement wheel uses a single-wheel, ball bearing configuration. Cross-reference part numbers include HY3012710-XL and HY3012710-SMH.
Specifications
Compatibility
| Compatible Equipment | Hyster electric pallet trucks and stackers requiring 3.25 x 6.50 inch load wheels |
Material & Construction
| Tread Material | Polyurethane, 97A hardness |
| Finish | Precision-machined, non-marking polyurethane |
Part Numbers
| Manufacturer Part Number | HY 3012710 |
| OEM Part Number | HY3012710 |
| Alternate Part Number | HY3012710-XL, HY3012710-SMH |
| Cross-Reference Part Numbers | HY3012710-XL, HY3012710-SMH |
Frequently Asked Questions
Q: What are the dimensions of the HY 3012710 load wheel?
A: The HY 3012710 features a 3.25 inch diameter and 6.50 inch width. The extra width provides superior load distribution compared to narrower wheel designs.
Q: What polyurethane hardness and bearing configuration does this wheel use?
A: The HY 3012710 is constructed from polyurethane with a 97A Shore hardness rating. It uses a single-wheel, ball bearing configuration that provides smooth rotation and long service life in electric pallet truck and stacker applications.
Q: What cross-reference part numbers are available for the HY 3012710?
A: The documented cross-reference and alternate part numbers are HY3012710-XL and HY3012710-SMH. These variants may have different specifications, so verify compatibility with your specific equipment model.
Q: Which equipment types are compatible with the HY 3012710?
A: The HY 3012710 is designed for Hyster electric pallet trucks and stackers that require a 3.25 inch diameter load wheel. Confirm the width and bore size match your lift truck before ordering.
Q: How does the HY 3012710 compare to other Hyster 3.25 inch wheel models?
A: The HY 3012710 measures 6.50 inches wide, making it wider than the 3012707-A (4.50 inches) and 3012707-XL (5.00 inches). It uses the same 97A durometer as the 3012707-XL but with significantly greater width for higher load capacity applications.
