Product Description

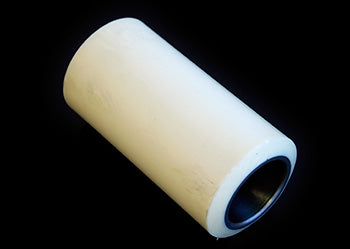

The GW 9141-XL Poly XL Load Wheel is expertly designed for electric lift trucks, providing exceptional performance and durability. This load wheel features a robust construction that ensures reliability in demanding environments.
Specifications: 3.250 inch diameter x 6.500 inch width (3.250" x 6.500" | 3.25 x 6.5 wheel | 3-1/4 x 6-1/2 | 82.55mm x 165.10mm)
• Made from abrasion-resistant XL polyurethane compound (97A durometer)
• Steel core construction for enhanced strength and stability
• Ideal for heavy-duty applications and OEM installations
This load wheel is compatible with OEM installations requiring the GW 9141-XL specification, making it a perfect choice for upgrading or replacing existing wheels.
Specifications
Dimensional Specifications
| Mounting Compatibility | Fits selected electric pallet trucks and lift trucks specified by OEM using GW 9141-XL |
Material & Construction
| Core Material | Steel core (bonded construction) |
Part Numbers
| Manufacturer Part Number | GW 9141-XL |
| Cross-Reference Part Numbers | GW9141XL, Generic Wheel |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 6.5 |
Frequently Asked Questions
Q: What is the bearing size for the GW 9141-XL wheel, and does it come with bearings installed?
A: The GW 9141-XL is a polyurethane tire only with a steel core and does not include bearings. You will need to source and install your own bearings separately. If you need a complete assembly with bearings already installed, upgrade to the GW 9141-XL-A, which comes as a finished wheel assembly with a 25mm bearing ID pre-installed.
Q: Can I use the GW 9141-XL to replace a worn 3.25 x 6.5 wheel on my electric pallet jack?
A: Yes, if your jack originally used a GW 9141-XL or equivalent 3.250 x 6.500 load wheel. Confirm the bearing ID matches your axle bore (typically 20mm to 25mm) and that the 97A durometer rating is appropriate for your application. Do not mix wheel durometers on the same axle, as this causes uneven wear and steering issues. Verify your OEM documentation first.
Q: What does 97A durometer mean, and how does it affect wheel performance?
A: 97A durometer is a Shore hardness rating that indicates the wheel is very hard and abrasion-resistant. This high durometer makes the GW 9141-XL ideal for rough concrete, outdoor surfaces, and heavy-duty electric lift trucks where wear resistance matters more than grip. Softer wheels (70A-85A) provide better traction but wear faster; harder wheels last longer but may slide on smooth floors. Choose based on your floor surface and duty cycle.
Q: What are the exact dimensions, and does the GW 9141-XL fit standard wheel axles?
A: The GW 9141-XL measures 3.250 inches (82.55mm) outside diameter and 6.500 inches (165.10mm) width. The steel core is bonded to the polyurethane tire. Always measure your current axle bore and mounting hub width before ordering. This wheel requires a 25mm bore if you purchase the assembly version (GW 9141-XL-A); if you buy the tire-only version, verify your existing bearing size first.
Q: How often should I replace the GW 9141-XL, and what are signs of wear?
A: Replace when the tire shows deep cracks, chunking, uneven wear patterns, or if the steel core becomes exposed. Inspect every 6 months on heavy-use equipment. The 97A durometer compound typically lasts 12-24 months depending on floor type and load cycles. Flat spots indicate overload or parking on concrete; diagonal wear suggests misalignment or bent axles. Stop using the jack immediately if the wheel wobbles or has visible core separation.
