Product Description

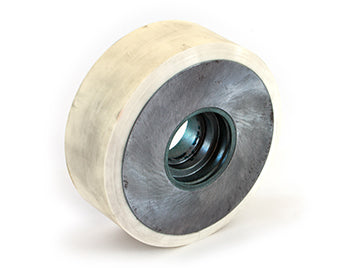

Load wheel assembly for Allis Chalmers electric lift trucks, OEM part number AC 8733670. Manufactured with polyurethane tread and machined steel core for continuous duty cycle operation. Includes sealed ball bearing with 17 mm through bore. Cross-reference part number PM215179. Rated for standard load capacity. Overall dimensions: 92 mm diameter, 76 mm width, 100 mm hub length.
Specifications
Material
| Tread Material | Polyurethane |
| Core Material | Machined steel, surface finish to SAE 1045 |
| Tread Hardness | Shore A 92 |
Part Numbers
| OEM Part Number | AC 8733670 |
| Cross-Reference Part Numbers | PM215179 |
Frequently Asked Questions
Q: What are the physical dimensions of the AC 8733670 load wheel?
A: The AC 8733670 has an overall diameter of 92 mm, a width of 76 mm, and a hub length of 100 mm. The bearing bore is 17 mm through bore with a sealed ball bearing assembly. Verify these dimensions match your equipment mounting before ordering.
Q: What materials are used in the AC 8733670?
A: The core is machined steel with SAE 1045 surface finish, providing strength and concentricity. The tread is polyurethane compound rated at Shore A 92 hardness, balancing load capacity with floor protection for continuous duty cycle operations.
Q: What is the cross-reference part number for the AC 8733670?
A: Cross-reference part number PM215179 corresponds to the AC 8733670. Verify compatibility with your equipment documentation before substituting equivalent parts.
Q: What is the load capacity of the AC 8733670?
A: The AC 8733670 is rated for standard load capacity suitable for Allis Chalmers electric lift truck applications. The Shore A 92 polyurethane compound and sealed bearing assembly support continuous material handling duty. Actual load limits depend on truck model and application.
Q: Does the AC 8733670 include a bearing assembly?
A: Yes. The AC 8733670 comes with a sealed ball bearing assembly and a 17 mm through bore for press-fit or bolt mounting. The sealed design protects against dirt and moisture in warehouse and cold-storage environments.
Q: How long does the AC 8733670 typically last in service?
A: Lifespan varies by duty cycle and floor conditions. Continuous duty typically delivers 1,500 to 3,000 operating hours. Sealed bearing design extends wheel life by protecting against contamination. Regular tread inspection and bearing lubrication (if applicable) maintain reliability.
