Product Description

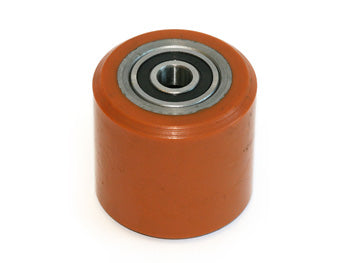

The GW 685-A Load Wheel Assembly by Liftsplus.com is designed specifically for electric pallet jack applications, providing exceptional durability and performance for heavy load handling. Constructed with a 95A durometer Durarun polyurethane material, this wheel offers enhanced wear resistance and reliability in industrial settings.
Specifications: 2.500 inch diameter x 2.380 inch width (2.500" x 2.380" | 2.5 x 2.38 wheel | 2-1/2 x 2.38 | 63.50mm x 60.45mm) | Bearing ID: .50in (12.7 mm bore | 0.500in ID)
• Made from high-quality 95A durometer Durarun polyurethane for superior performance
• Features pre-lubricated sealed bearings for reduced maintenance
• Engineered for robust industrial performance and heavy load handling
This load wheel assembly is compatible with various electric pallet jacks, ensuring optimal functionality and efficiency in your operations.
Specifications
Construction
| Core Material | Poly wheel with integrated bearing seat |
Part Numbers
| Manufacturer Part Number | GW 685-A |
| Cross-Reference Part Numbers | GW685-A, GP 685-A, GW685A, GP 685A, 685A |
| OEM Part Number | GW 685-A |
Wheel Dimensions
| Material | |
| Outside Diameter | 2.5 |
| Width Side to Side | 2.38 |
Frequently Asked Questions
Q: What are all the cross-reference part numbers for GW 685-A?
A: GW 685-A cross-references include: GW685-A, GP 685-A, GW685A, GP 685A, and 685A. These are all equivalent and interchangeable. The OEM part number is GW 685-A. When ordering replacement wheels, provide any of these numbers to your supplier. Verify the part you receive matches the 2.500 x 2.380 dimension specification.
Q: Is GW 685-A a direct replacement for the standard GW 685?
A: Yes, GW 685-A is a direct replacement for GW 685. Both are 2.500 inch diameter load wheels with 0.500 inch bearing bore. The width specification shows slight variation: GW 685 lists 2.375 inch width while GW 685-A lists 2.380 inch width (0.005 inch difference). This tolerance variance is negligible and does not affect fitment or performance. Either part number can be substituted for the other.
Q: How long does the GW 685-A Durarun wheel typically last?
A: Lifespan depends on usage intensity, load weight, and warehouse conditions. A typical GW 685-A Durarun 95A polyurethane wheel lasts 12 to 36 months in normal warehouse service. Heavy use or outdoor application reduces life to 6 to 12 months. Indoor climate-controlled warehouses with smooth concrete floors extend life to 36 to 48 months. Inspect wheels every 3 months; replace if diameter reduces more than 0.125 inches or if wear pattern becomes uneven.
Q: What happens if I use the wrong bearing ID size with GW 685-A?
A: The GW 685-A requires a 0.500 inch bearing bore (12.7 mm). Using wrong bore sizes causes these problems: Too large (oversized bore) causes axle-to-wheel play, leading to wobbling, uneven wear, and reduced maneuverability. Too small (undersized bore) prevents wheel installation or causes binding and premature bearing failure. Always verify bore size matches your axle before installation. Do not force fit wheels onto mismatched axles.
Q: Can the GW 685-A be used for both drive and load wheel applications?
A: No. The GW 685-A is designed as a load wheel (non-driven support wheel) for electric pallet jacks. It is not rated for drive wheel duty where motor torque is applied. Using this wheel for drive applications causes premature failure of the polyurethane tread and bearing. Consult your equipment manual to determine which wheel positions are load versus drive, and order the correct wheel type for each position.
