Product Description

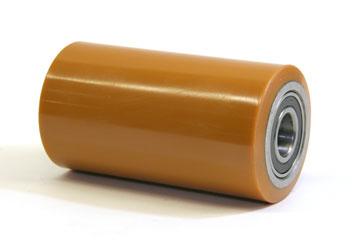

Allis Chambers AC S983 Polyurethane Load Wheel Assembly for electric lift trucks features a 95A durometer polyurethane tread, sealed double-row ball bearings, and steel core construction. Specifications include 3.25 inch diameter, 4.00 inch width, and a maximum static load of 1200 lbs at a 24 inch load center. Press fit design compatible with axle diameter of 1.25 inches and hub length of 4.00 inches. No cross-reference part numbers available.
Specifications
Material & Construction
| Tread Material | Polyurethane compound, 95A durometer |
| Core Material | Steel core, ASTM A36 equivalent |
Mechanical Specifications
| Polyurethane Hardness | 95A durometer |
Part Numbers & Compatibility
| OEM Part Number | AC S983 |
Frequently Asked Questions
Q: What are the dimensions and weight capacity of the AC S983 load wheel assembly?
A: The AC S983 has a diameter of 3.25 inches, width of 4.00 inches, axle diameter of 1.25 inches, and hub length of 4.00 inches. It is rated for a maximum static load of 1200 lbs at a 24 inch load center. Verify these dimensions match your lift truck axle and frame before ordering.
Q: What materials are used in the AC S983 construction?
A: The AC S983 features a 95A durometer polyurethane tread bonded to a steel core (ASTM A36 equivalent). This combination provides a durable tread for load positioning while the steel core ensures structural integrity and press-fit engagement with your axle.
Q: What bearing configuration does the AC S983 use?
A: The AC S983 includes sealed double-row ball bearings that provide smooth rotation and protection against contamination. These sealed bearings reduce maintenance requirements and extend service life in typical material handling environments.
Q: Is the AC S983 a press-fit assembly, and what axle size does it require?
A: Yes, the AC S983 uses a press-fit design with a hub length of 4.00 inches. It is compatible with an axle diameter of 1.25 inches. Confirm your lift truck axle diameter matches this specification before ordering.
Q: What lift truck models is the AC S983 compatible with?
A: The AC S983 is designed as a replacement load wheel assembly for Allis Chalmers electric lift trucks. No cross-reference part numbers are available. Verify your equipment part number and specifications match the AC S983 before ordering.
