Load Wheel Assembly for Blue Giant PT50/PT55
BG 103
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

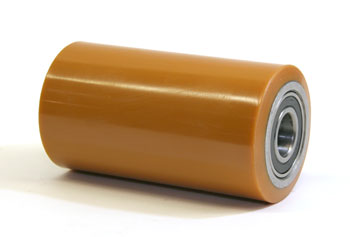

The BG 103 is a load wheel assembly designed for Blue Giant electric pallet trucks PT50 and PT55. This assembly features a durable polyurethane tread bonded to a steel hub with an integrated sealed ball bearing for smooth, reliable operation. Perfect for heavy-duty material handling applications, the BG 103 delivers consistent performance and long service life in electric pallet truck operations. Direct replacement for original equipment on compatible models.
Specifications
Compatibility
| Compatible Models | PT50, PT55 |
| Compatible Make | Blue Giant |
Specifications
| Tread Material | Cast polyurethane, 95A Shore hardness |
| Hub Material | SAE 1018 steel |
| Bearing Type | 6203 sealed ball bearing |
| Locking Bolt Specification | 5/16-24 UNF |
Part Numbers
| Manufacturer Part Number | BG 103 |
| Cross References | BG 103-297, BG 103-297-A, BG 103-297-A-D, BG 103-297-A-D-Super, BG 103-297-N-A |
Frequently Asked Questions
Q: What equipment does the BG 103 load wheel fit?
A: The BG 103 is engineered specifically for Blue Giant electric pallet trucks PT50 and PT55. Verify your equipment model matches these specifications before ordering.
Q: What are the key specifications for the BG 103?
A: The BG 103 features a polyurethane tread with 95A Shore hardness bonded to an SAE 1018 steel hub. The assembly includes an integrated 6203 sealed ball bearing and a mounting with 5/16-24 UNF fastener compatibility.
Q: Are there cross-reference part numbers for the BG 103?
A: The BG 103 has multiple cross-references including BG 103-297, BG 103-297-A, BG 103-297-A-D, BG 103-297-A-D-Super, and BG 103-297-N-A. These variants may have different specifications, so confirm your exact match when substituting.
Q: How durable is the polyurethane tread?
A: The cast polyurethane tread is rated at 95A Shore hardness for heavy-duty electric pallet truck operations. This material resists wear and deformation through continuous material handling cycles on both indoor and outdoor surfaces.
Q: What maintenance is required for the BG 103?
A: The integrated 6203 sealed ball bearing requires periodic inspection for damage or excessive play. Monitor tread wear regularly and replace the assembly when tread depth becomes uneven or the grip deteriorates. Clean polyurethane tread surfaces to remove debris that could accelerate wear.
Q: Can the BG 103 be used on other equipment besides Blue Giant?
A: The BG 103 is specifically designed for Blue Giant PT50 and PT55 models. Cross-compatibility with other brands or models is not recommended unless explicitly verified by the equipment manufacturer.
Q: How should the BG 103 be stored?
A: Store the BG 103 in a dry environment away from direct sunlight and extreme temperatures. Keep the sealed bearing clean and protected from moisture and contaminants. Store upright or on a stable surface to prevent deformation of the polyurethane tread.
Q: What is the wheel assembly lifespan?
A: The lifespan of the BG 103 depends on usage frequency, surface conditions, and load weights. In typical electric pallet truck operations, a well-maintained assembly can deliver multiple years of service before tread wear requires replacement.
